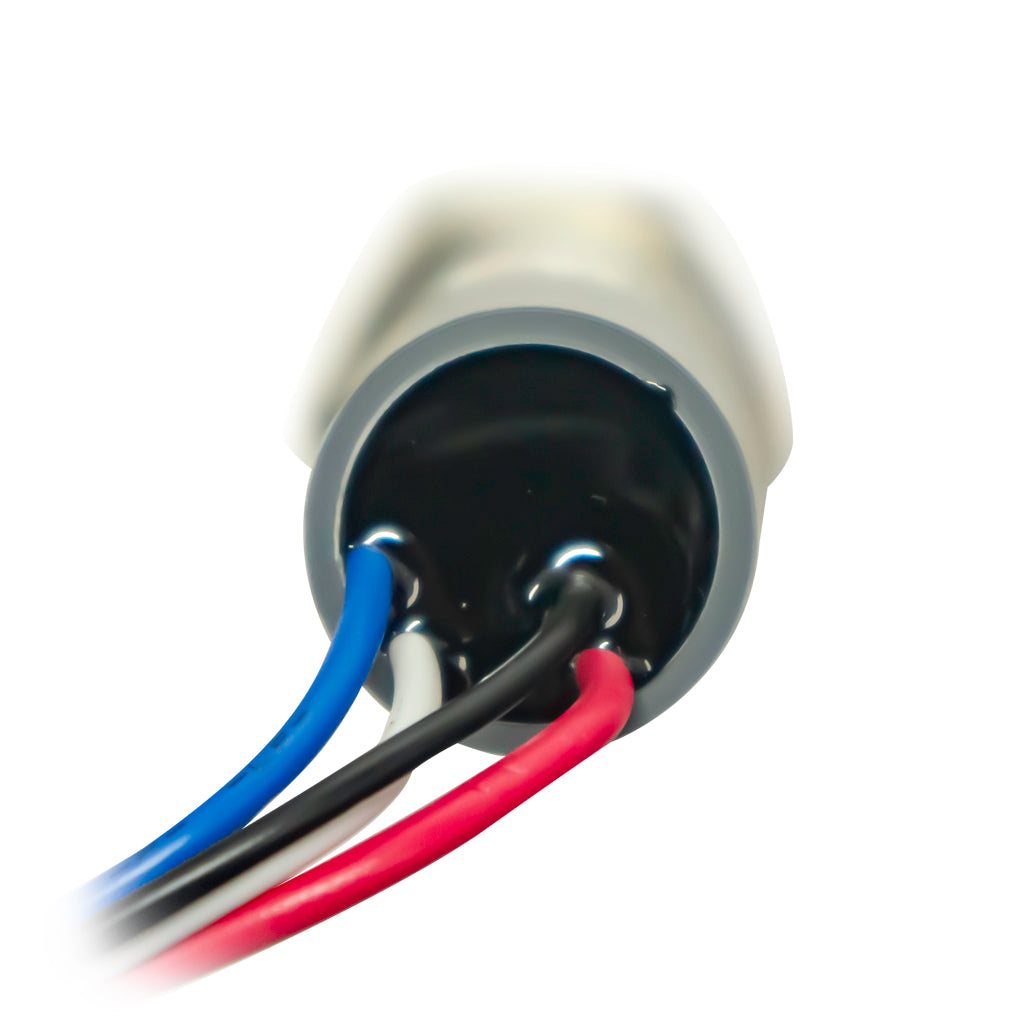

  • Harsh Environment Dual Output Marine Switches Fully Potted

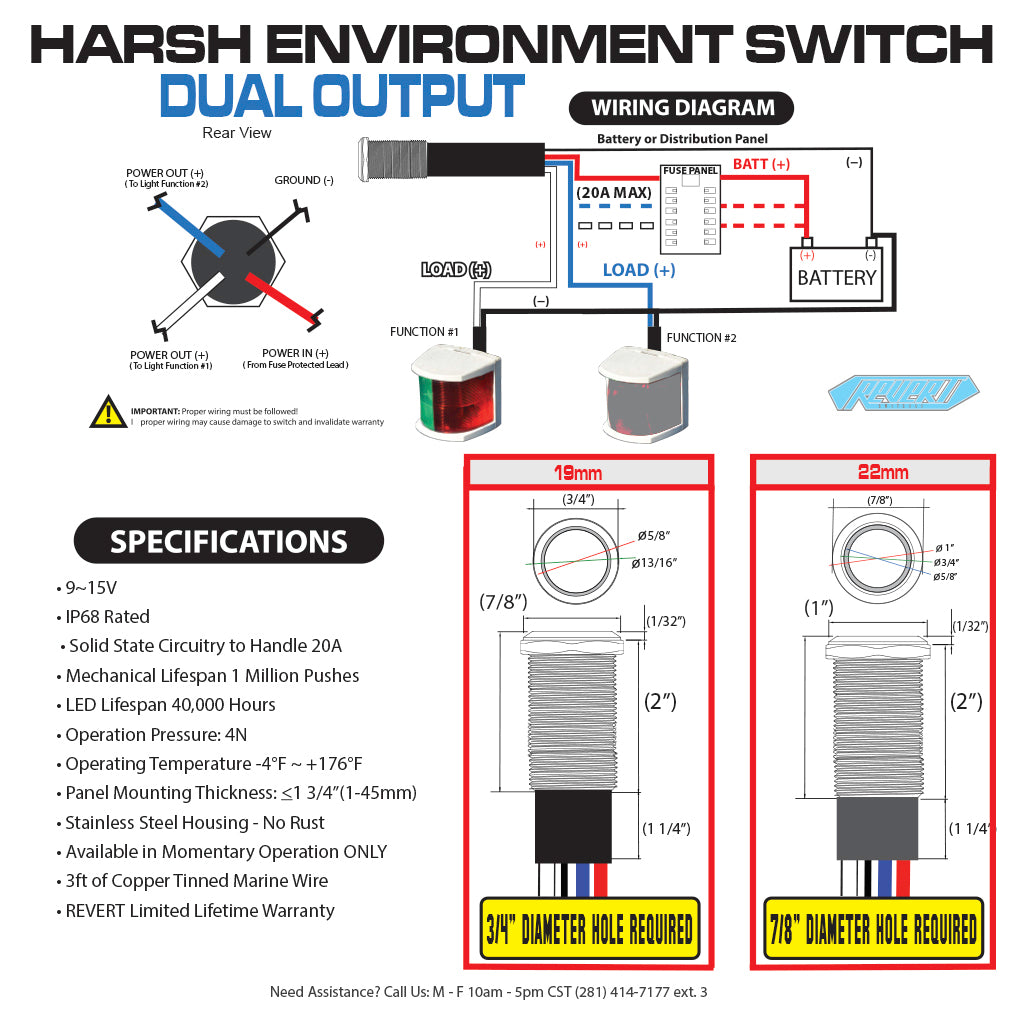

  • Harsh Environment Dual Output Marine Switches Wiring Diagram with dimensional specifications.
  • Revert Dual Output Marine Push Button Panel Installation
1 12

REVERT LLC

REVERT 22mm Dual Output Nav/Anchor 3-Color Marine Push Button Switch – Black

REVERT 22mm Dual Output Nav/Anchor 3-Color Marine Push Button Switch – Black

$99.50 USD
$99.50 USD
Sale Sold out
Style

Press Once. Trust Forever.

The Revert 22mm Dual Output Harsh Environment Marine Push Button Switch is a game-changer for modern boat electrical systems. This innovative switch allows you to control two circuits (typically Navigation Lights + Anchor Light) from a single button with clear 3-color LED feedback.

Key Features:

  • Dual Output – Control two separate circuits (Nav + Anchor)
  • 3-Color LED Ring: Blue (Off), Red (Both On), Green (Anchor Only)

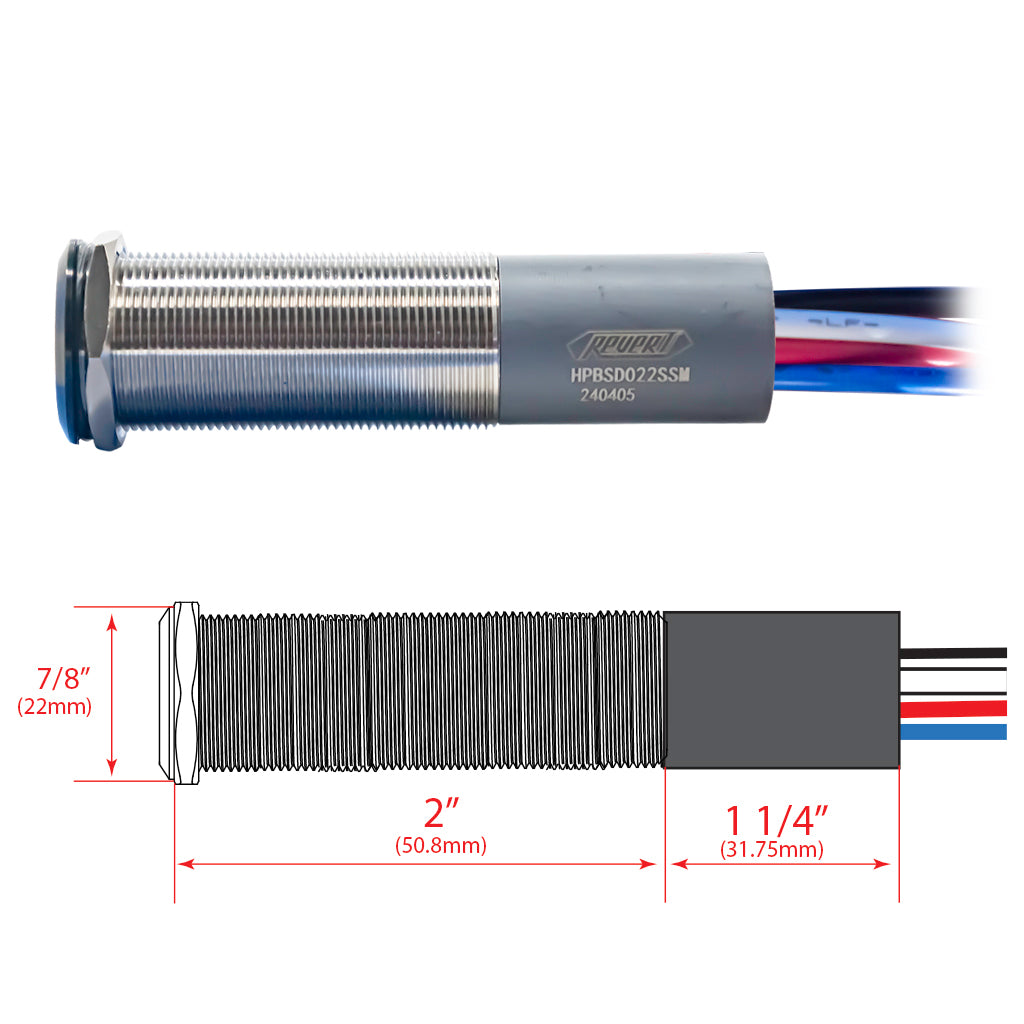

  • 22mm (7/8") diameter for easy operation
  • Input Voltage: 9~36V DC
  • IP68 waterproof and fully potted
  • Black hardcoat anodized 316 stainless steel housing
  • Solid State Circuitry rated for 20A
  • Auto-Latch operation
  • Salt spray, UV, and vibration tested

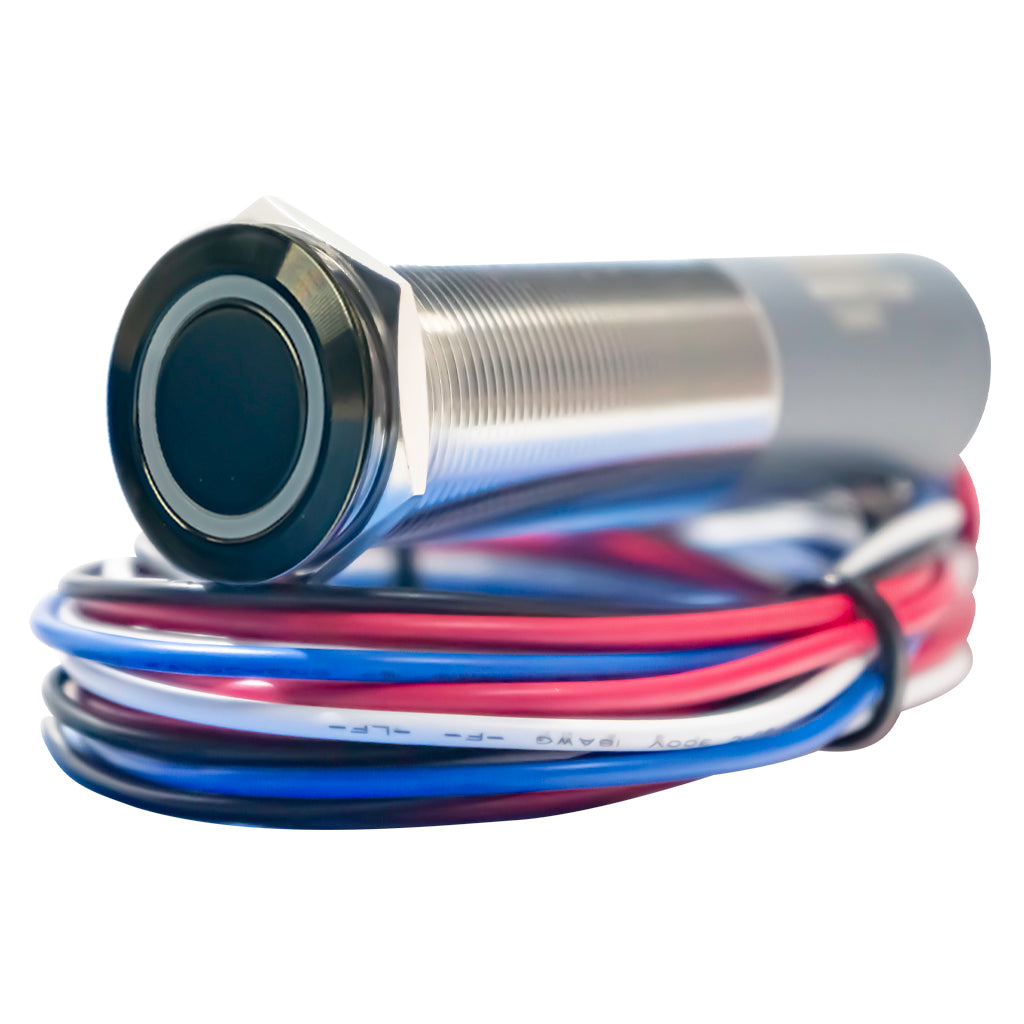

  • 3ft of 14 AWG tinned marine wiring
  • Revert Limited Lifetime Warranty

How It Works:

Power on (no press) = Blue LED.

1st press = Both circuits ON (Red LED).

2nd press = Anchor ON, Nav OFF (Green LED).

3rd press = All OFF (Blue LED).

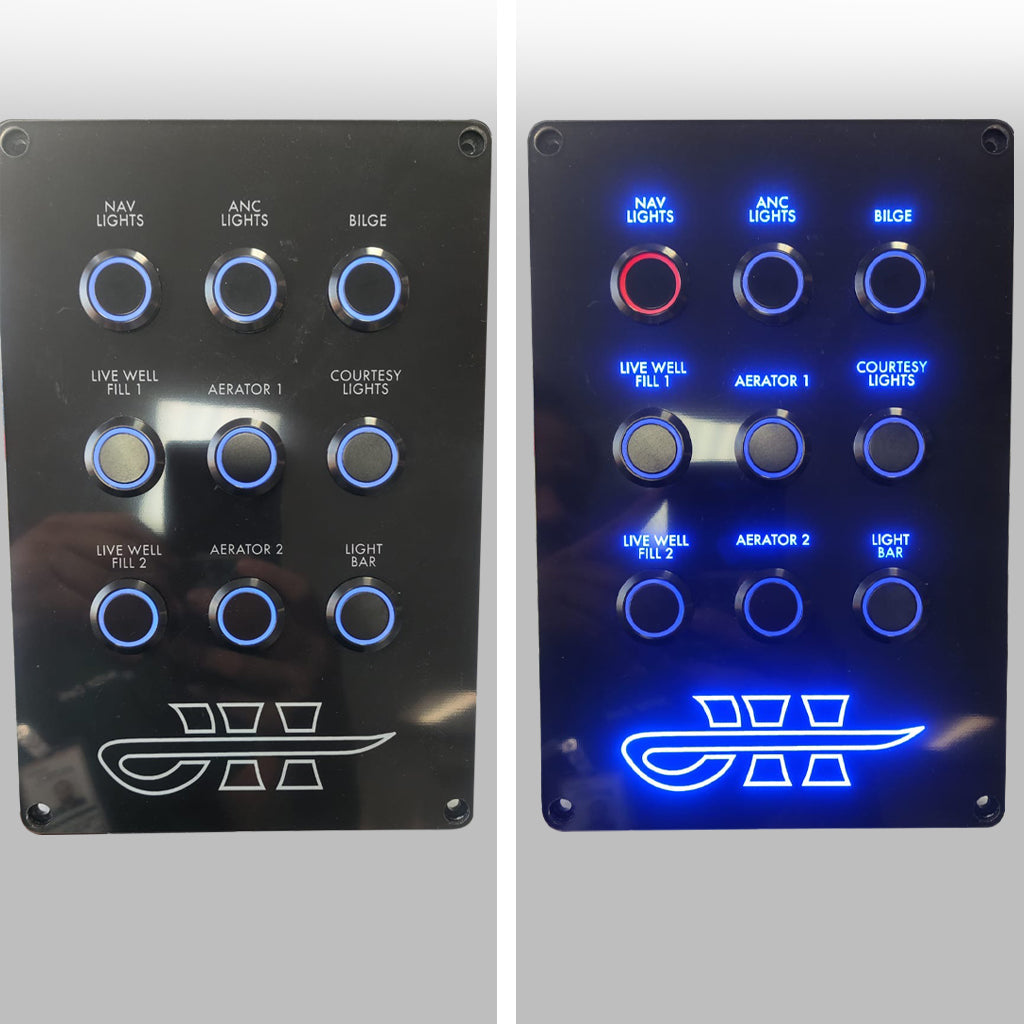

Perfect for center console boats, yachts, and commercial vessels where clean, efficient helm control is essential.

    Specification Sheet:




    FAQ – REVERT 22mm Dual Output Nav/Anchor Marine Push Button Switch (Black)

    What does "Dual Output" mean? Dual Output allows you to control two separate circuits (typically Navigation Lights and Anchor Light) from a single push button switch.

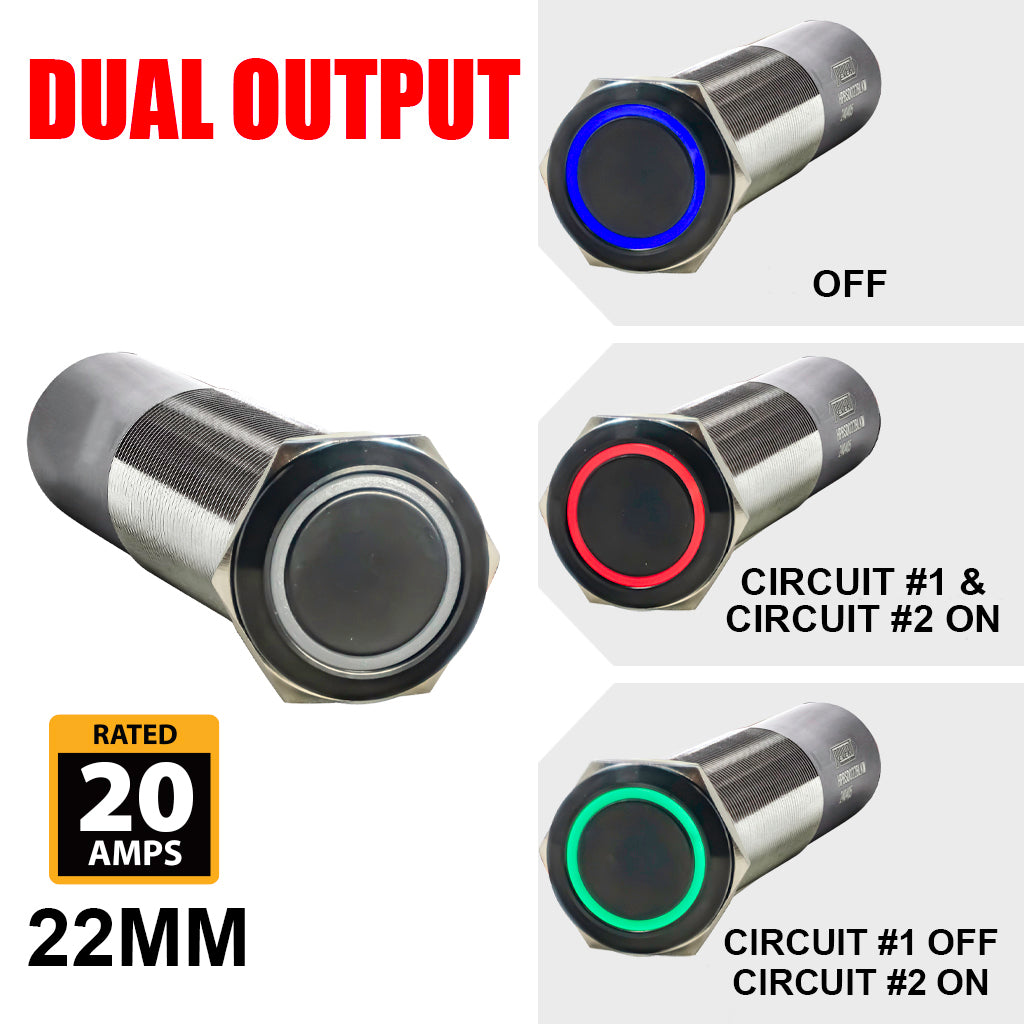

    How do the 3 LED colors work?

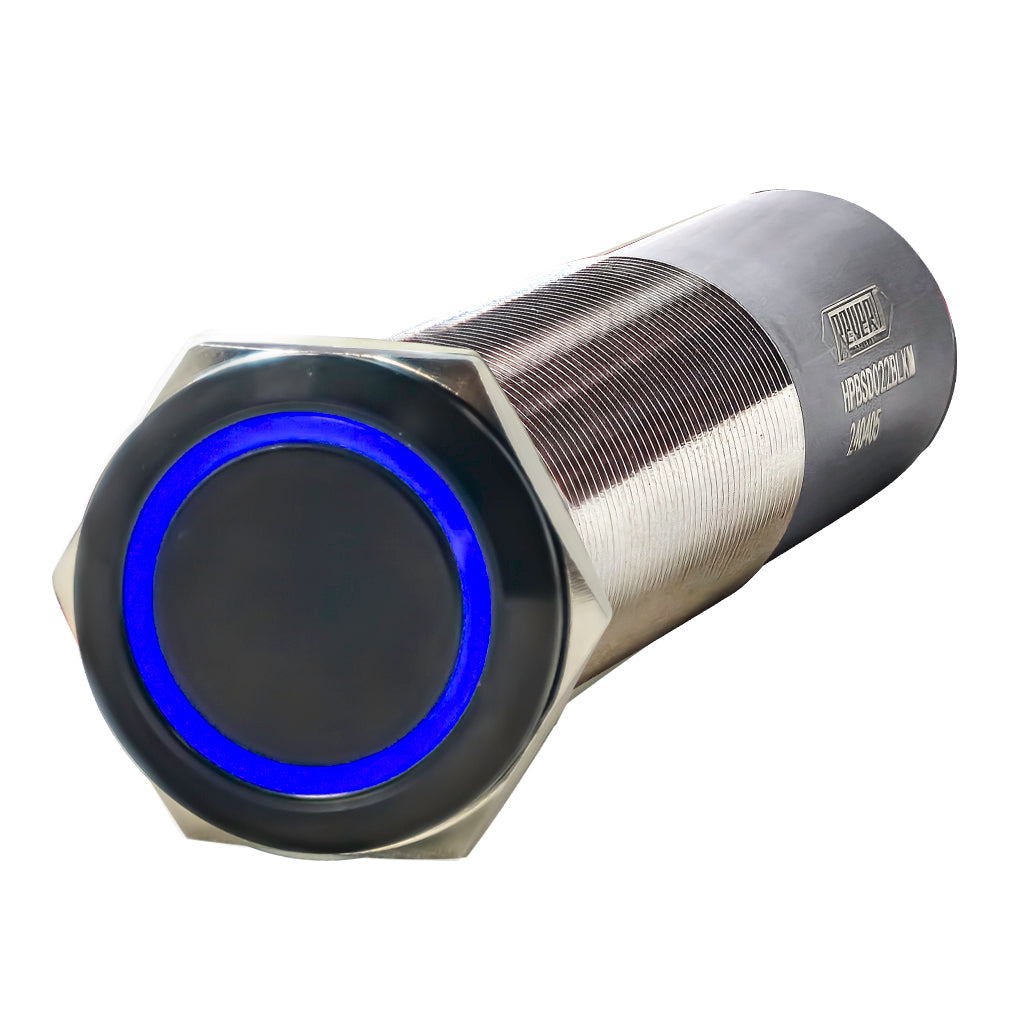

    • Blue = Both circuits OFF

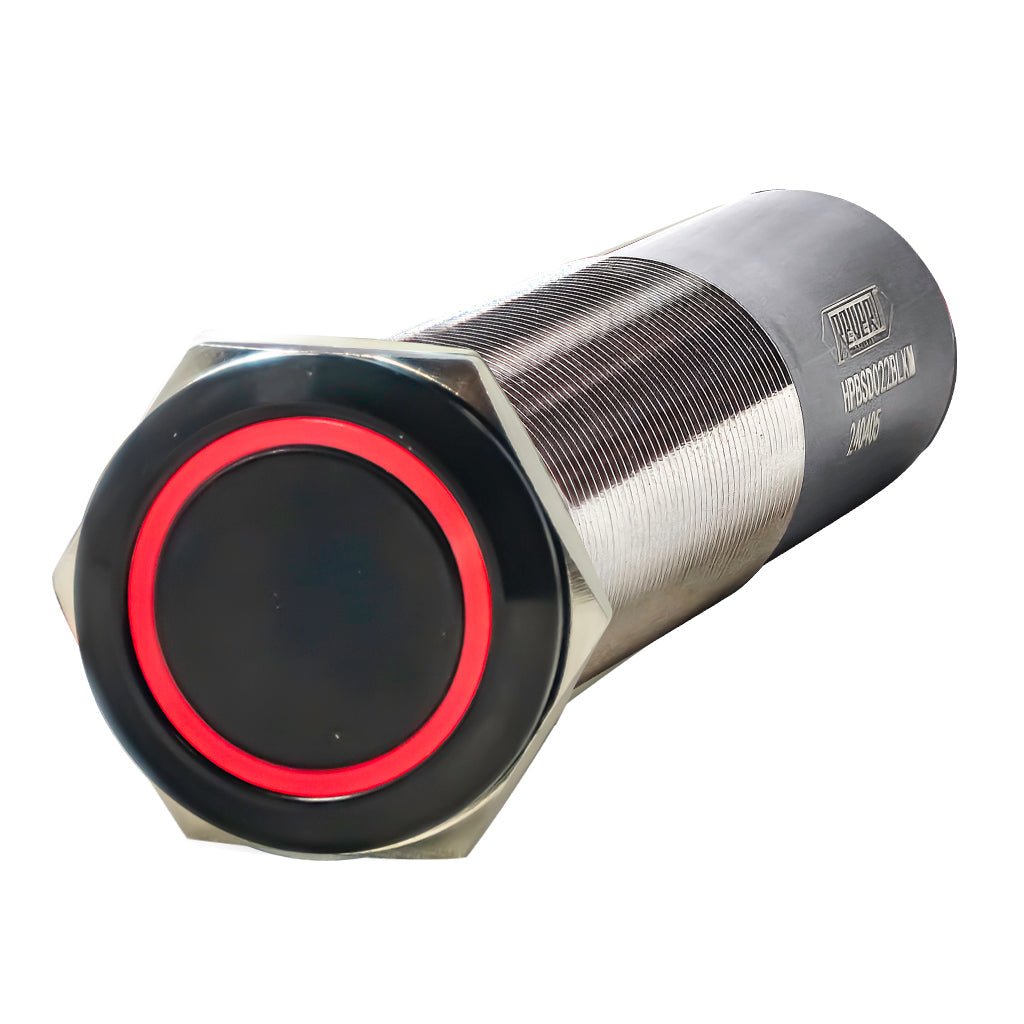

    • Red = Both Navigation and Anchor lights ON

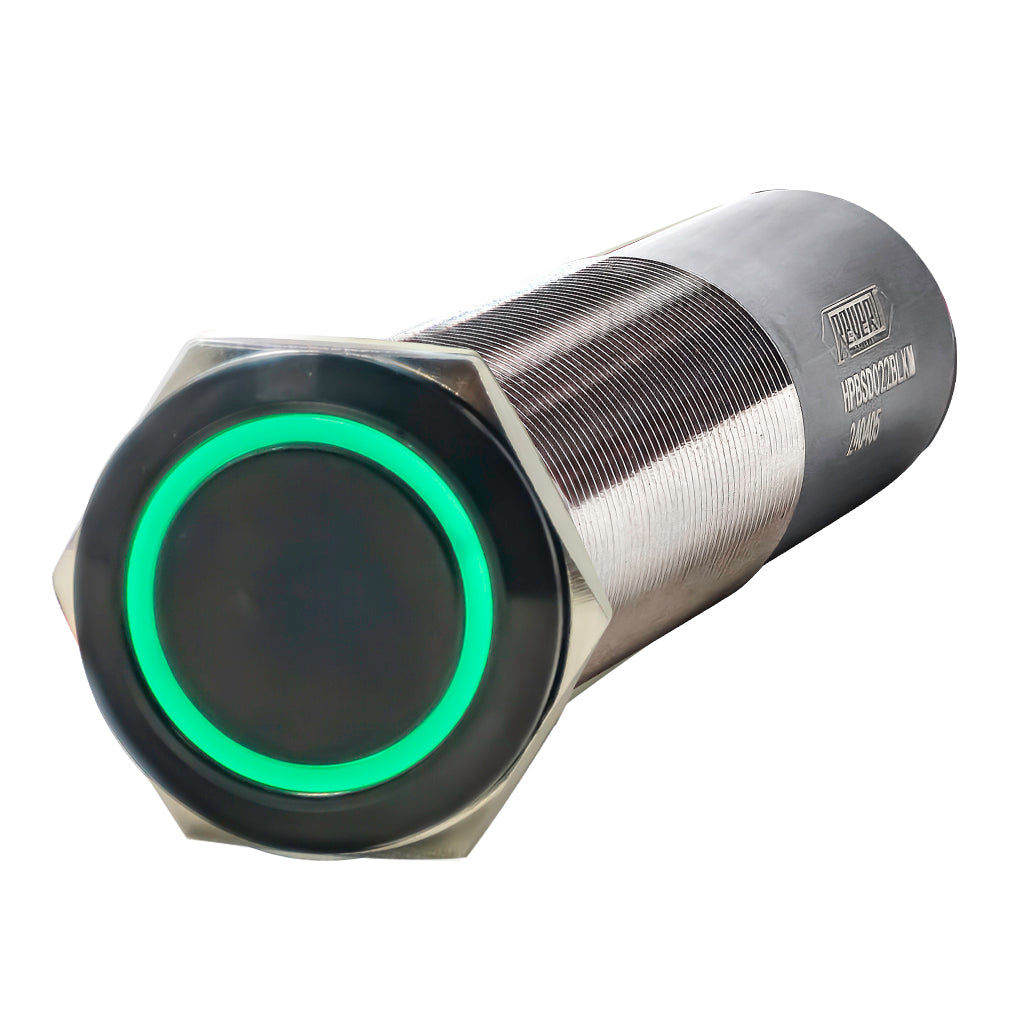

    • Green = Anchor light ON, Navigation lights OFF

    Is this switch waterproof? Yes. It is IP68 rated and fully potted, making it suitable for harsh marine environments and direct exposure to saltwater.

    What is the difference between this 22mm and the 19mm version? The 22mm version has a larger button (7/8"), which is easier to operate, especially with gloves or in rough conditions. Both sizes offer the same functionality and durability.

    Is it latching or momentary? This model is an Auto-Latch operation. This means the circuit latches, but the physical switch functions as a Momentary operation.

    What voltage does it support? It operates on 9~36V DC, standard for most 12V or 24V marine electrical systems.

    Can I use this for other applications besides Nav/Anchor? Yes. Any two circuits you want to control together or independently can work with this switch (e.g., deck lights + spreader lights, pumps, etc.).

    What is the mechanical lifespan? Rated for over 500,000 impressions, ensuring long-term reliability.

    Does it come with wiring? Yes. It includes 3 feet of 14 AWG tinned marine-grade wiring for easy installation.

    What is the warranty? This switch is backed by the Revert Limited Lifetime Warranty.
