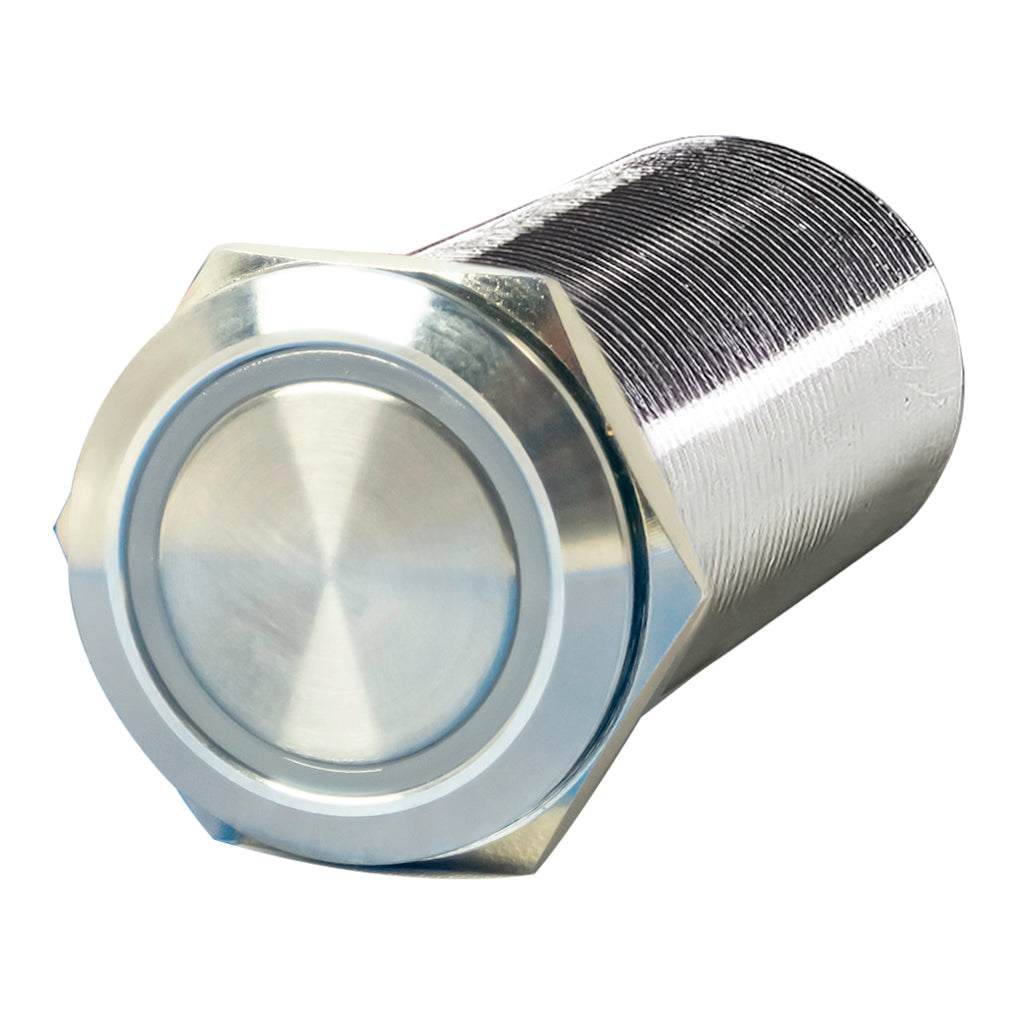

  • 22mm Stainless Steel Harsh Environment Marine Switches LED Off

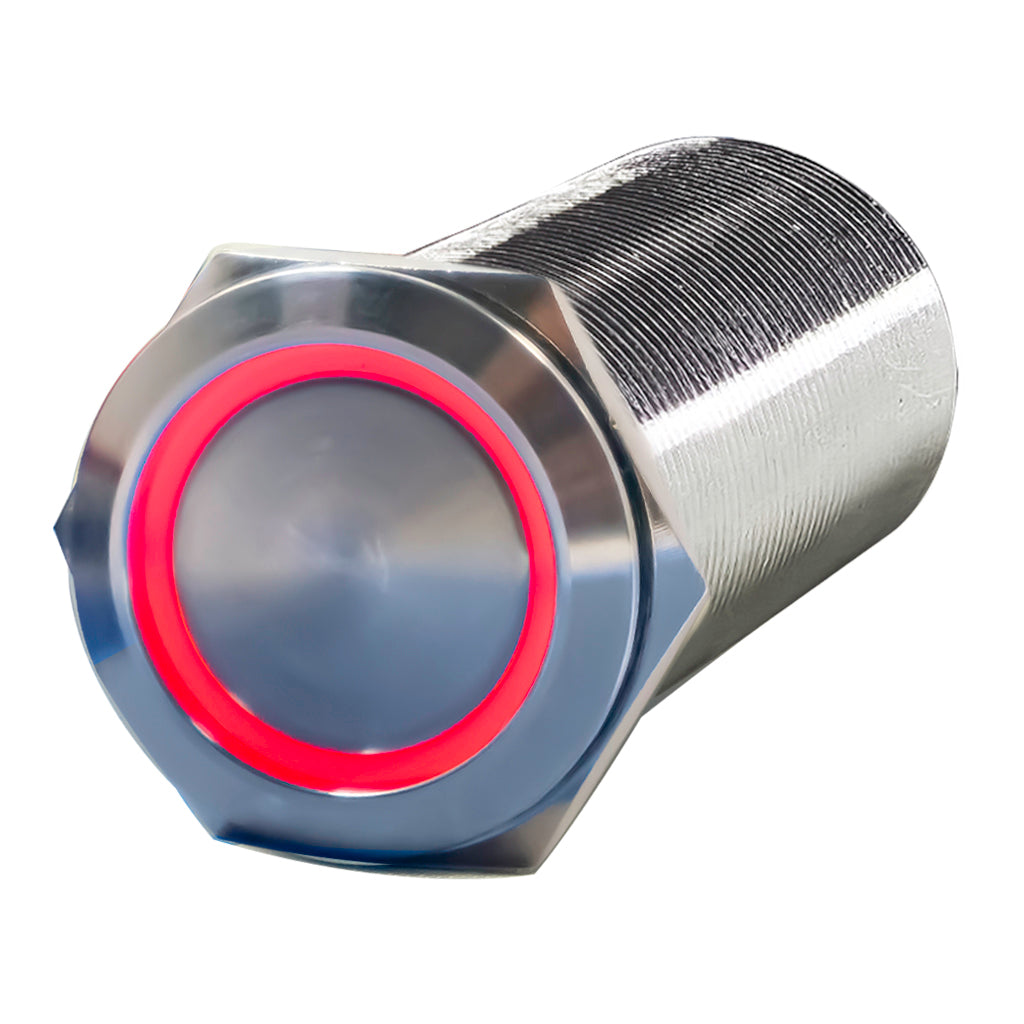

  • 22mm Stainless Steel Harsh Environment Marine Switches Red LED On

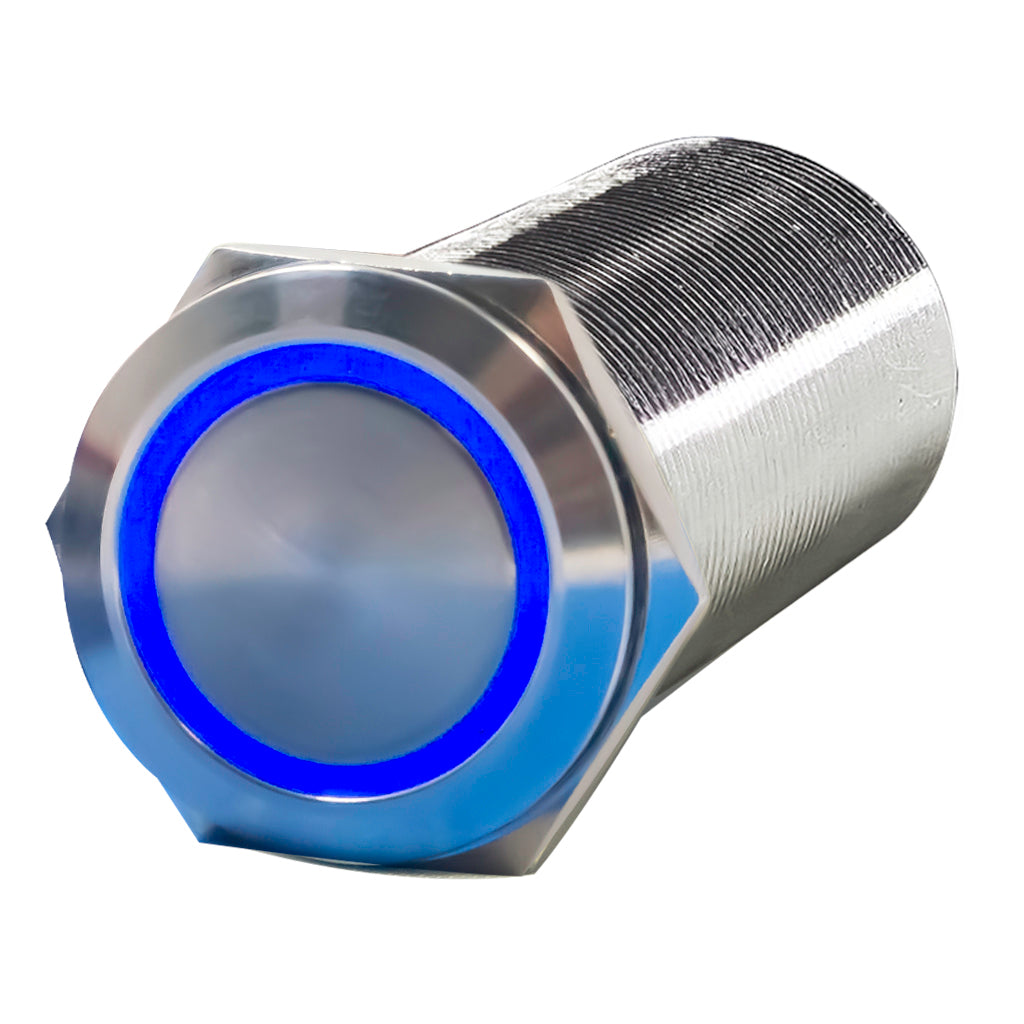

  • 22mm Stainless Steel Harsh Environment Marine Switches Blue LED On

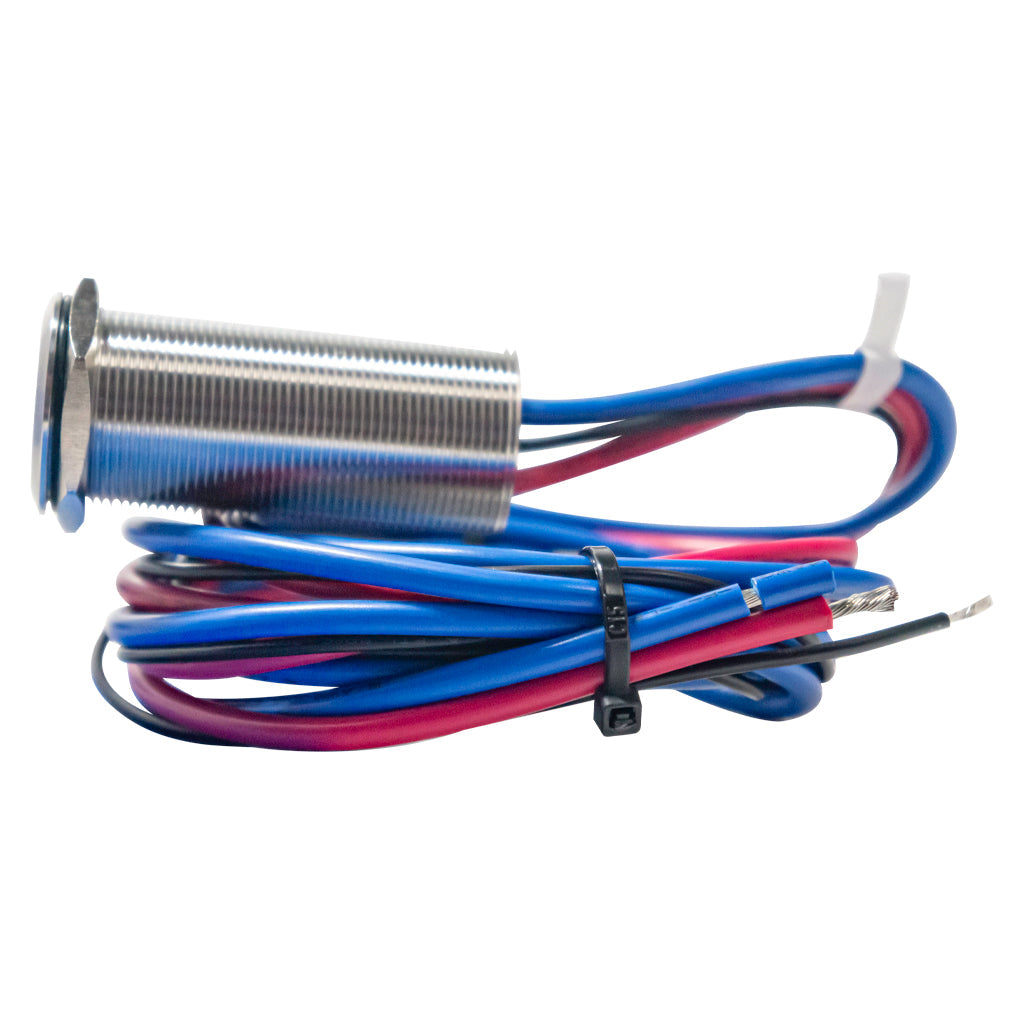

  • 22mm Stainless Steel Harsh Environment Marine Switches 3Ft Copper Tinned Marine Wire
  • 22mm Stainless Steel Harsh Environment Marine Switches 3Ft Copper Tinned Marine Wire

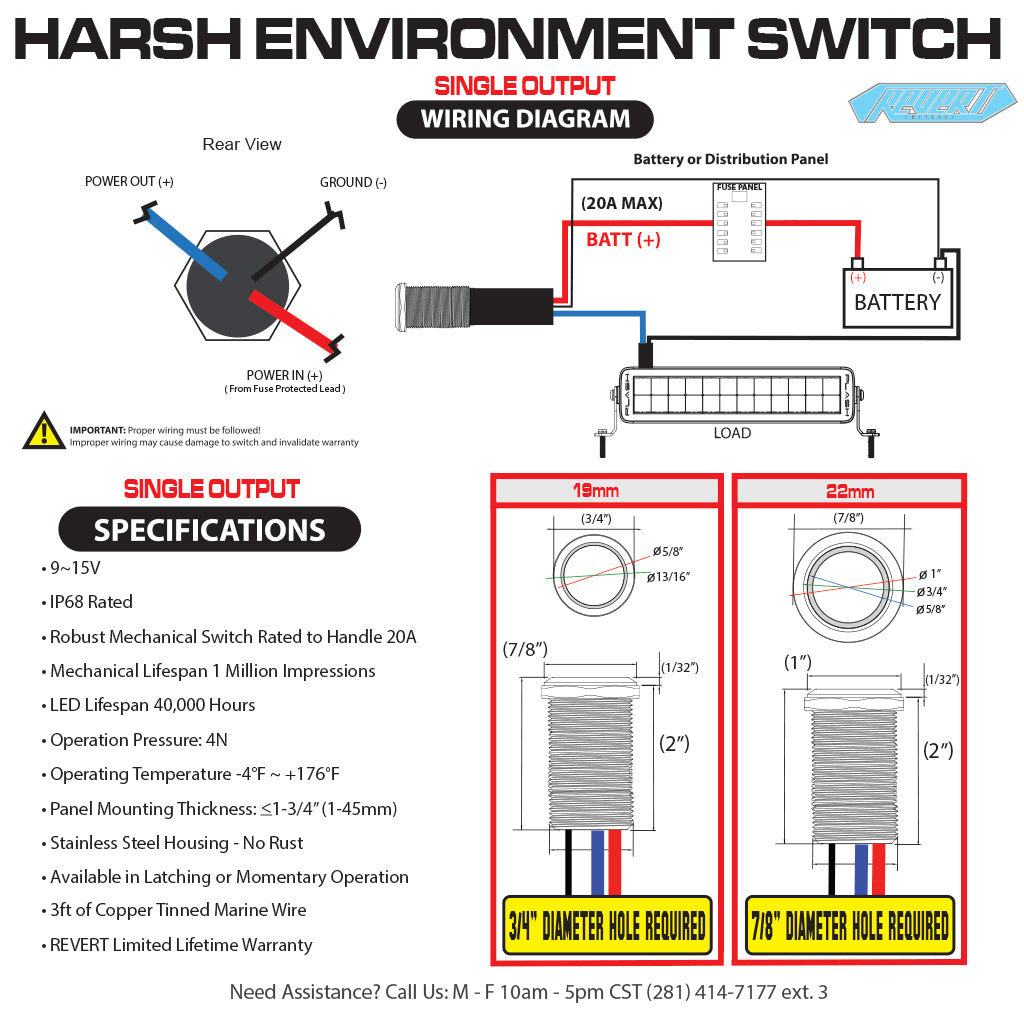

  • 22mm Stainless Steel Harsh Environment Marine Switches Wiring Diagram with dimensional specifications.

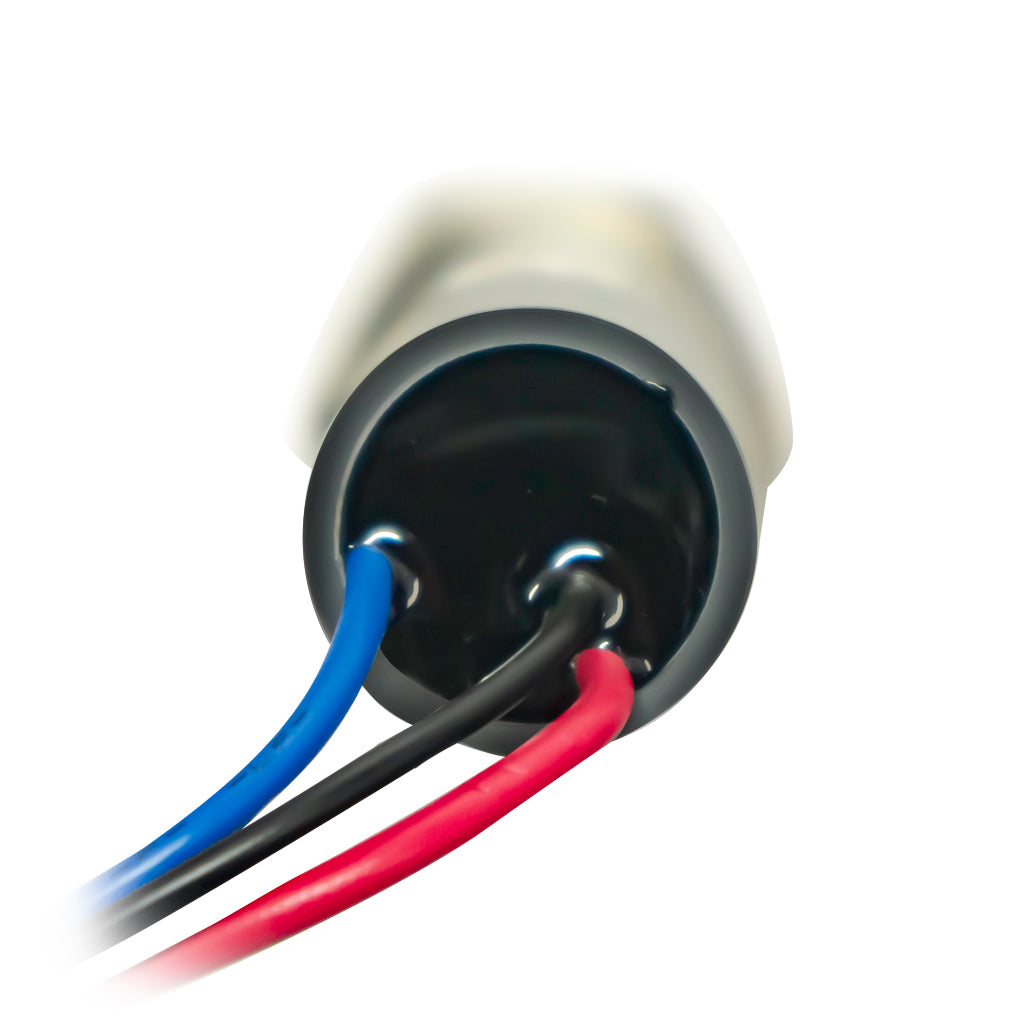

  • 22MM Harsh Environment Marine Switch Fully Potted
1 8

REVERT LLC

REVERT 22mm Dual Color Harsh Environment Marine Push Button Switch – Stainless Steel

REVERT 22mm Dual Color Harsh Environment Marine Push Button Switch – Stainless Steel

$49.50 USD
$49.50 USD
Sale Sold out
Style

Press Once. Trust Forever.

The Revert 22mm Dual Color Harsh Environment Marine Push Button Switch offers the perfect balance of size and visibility for marine applications. This heavy-duty switch is built with 316 stainless steel and fully potted for maximum protection against saltwater, UV, and vibration.

Key Features:

  • Larger 22mm (7/8") diameter button for easier operation
  • Input Voltage: 9~36V DC
  • IP68 waterproof and fully potted construction
  • Dual color LED backlit ring for clear status indication
  • 316 stainless steel housing
  • Robust 20A mechanical switch
  • Vibration and salt spray tested
  • Available in latching or momentary operation
  • Panel mounting thickness: <0.1"~1.85" (1mm~47mm)

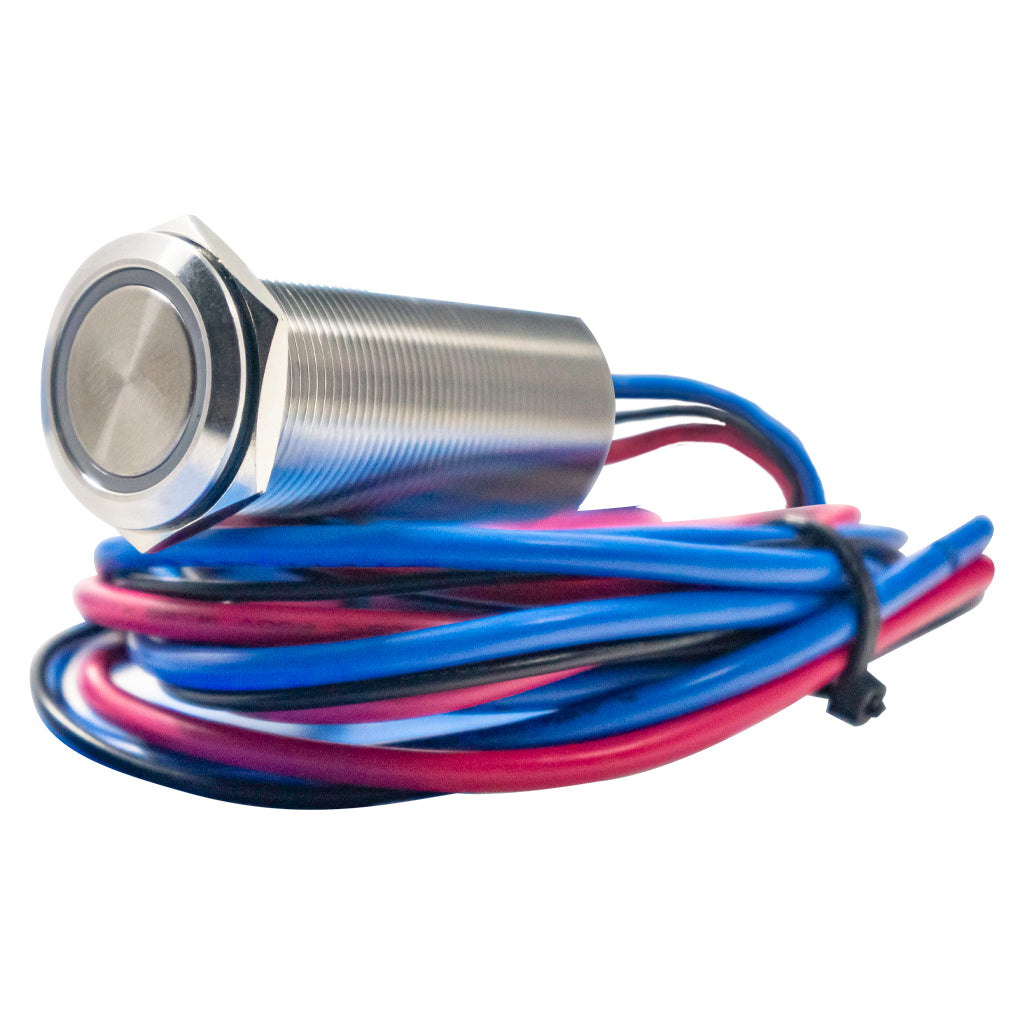

  • 3ft of 14 AWG tinned marine wiring
  • Revert Limited Lifetime Warranty

Ideal for navigation panels, lighting control, bilge pumps, and other high-use marine applications where a larger, more visible switch is preferred.

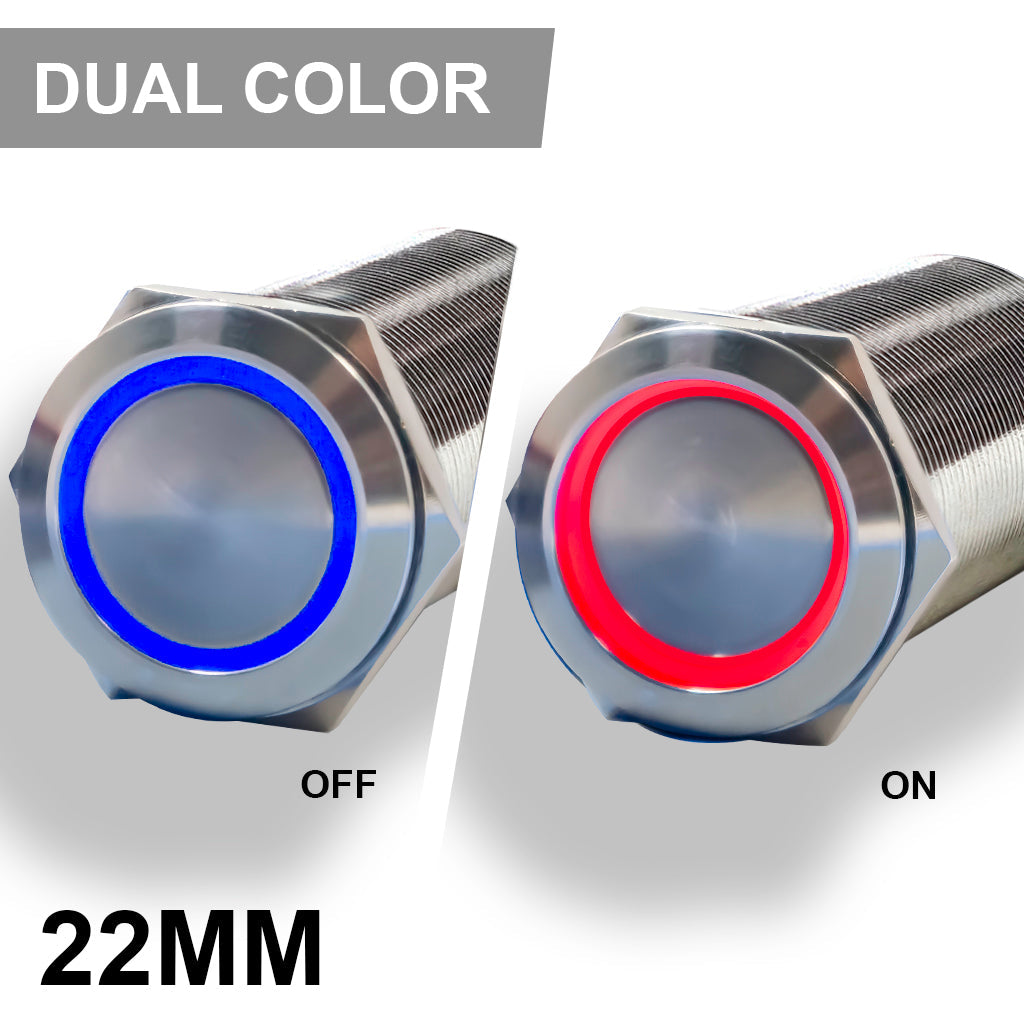

LED Color Options:

  • OFF Position: LED can be Blue, Red, or Off (no illumination)
  • ON Position: LED can be Blue (if Red is not selected for ON) or Red

Specification Sheet:

Harsh Environment Wiring Diagram PDF




FAQ – REVERT 22mm Dual Color Harsh Environment Marine Push Button Switch

What does Dual Color mean? The switch features a dual-color LED ring that changes color based on the switch position, giving you clear visual feedback at night or in low-light conditions.

What LED colors are available?

  • OFF Position: Blue, Red, or Off (no illumination)
  • ON Position: Red or Blue (Blue available only when Red is not selected for ON)

Is this switch waterproof? Yes. It is IP68 rated and fully potted, making it ideal for harsh marine environments and direct saltwater exposure.

What is the difference between 19mm and 22mm versions? The 22mm version has a larger button (7/8" diameter), which is easier to operate with gloves or in rough sea conditions. Both sizes offer the same durability and performance.

What voltage does it support? It operates on 9~36V DC, compatible with standard 12V and 24V marine electrical systems.

Is it latching or momentary? This model is available in both Latching (stays on until pressed again) and Momentary (on only while pressed) versions.

What is the expected lifespan?

  • LED lifespan: +40,000 hours
  • Mechanical lifespan: +150,000 impressions

Does it come with wiring? Yes. It includes 3 feet of 14 AWG tinned marine-grade wiring for simple installation.

What is the warranty? All Revert Switches are backed by our Limited Lifetime Warranty.
