REVERT 19mm Dual Color Harsh Environment Marine Push Button Switch – Stainless Steel

Press Once. Trust Forever.

The Revert 19mm Dual Color Harsh Environment Marine Push Button Switch is engineered for boat builders and marine professionals who demand uncompromising performance in saltwater conditions. Featuring 316 stainless steel construction and a dual-color LED illumination ring, this switch combines rugged durability with modern styling.

Key Features:

• 19mm (3/4") diameter – ideal for compact panels
• Input Voltage: 9~36V DC
• IP68 waterproof and fully potted
• Robust 20A mechanical switch
• Dual color LED backlit ring (customizable colors)
• 316 stainless steel housing
• Vibration and salt spray tested

• Available in latching or momentary operation

• Panel Mounting Thickness: 0.1"~1.85" (1mm~47mm)

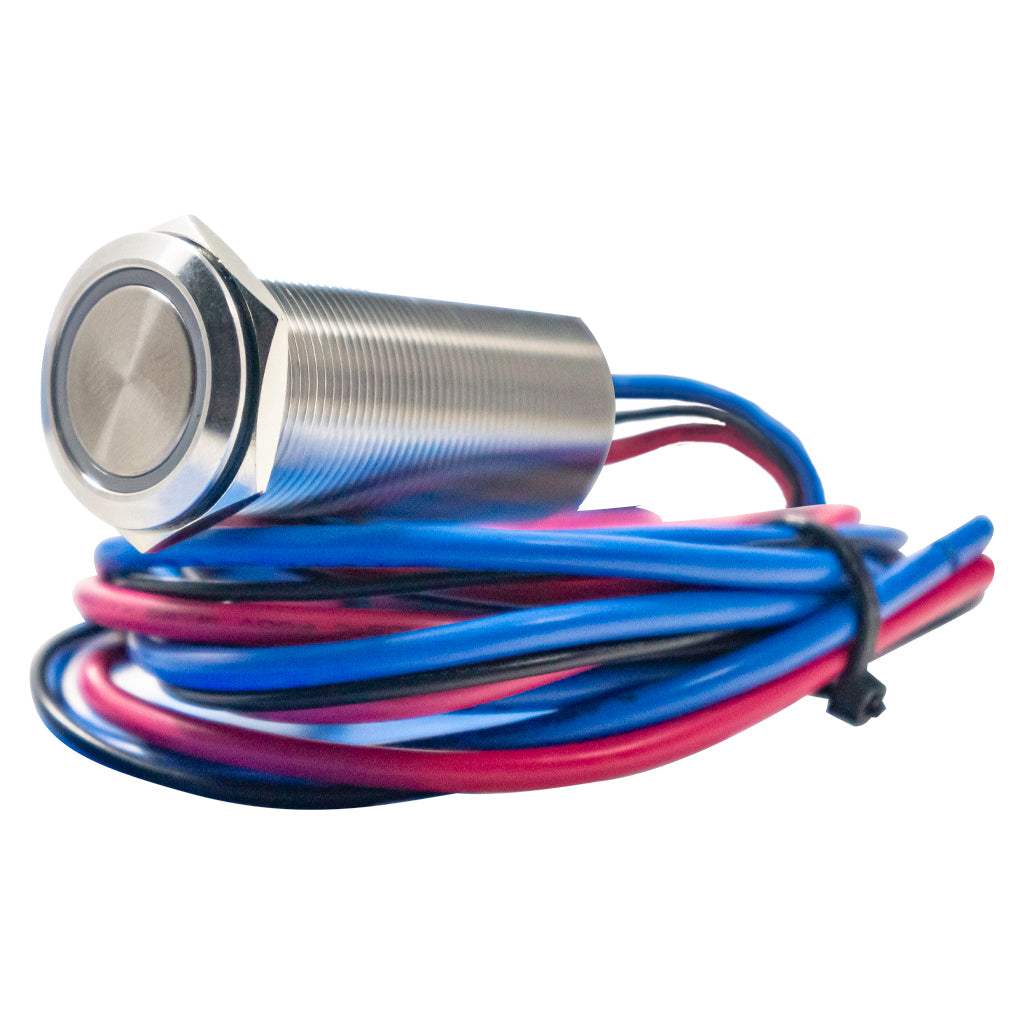

• 3ft of 14 AWG tinned marine wiring
• Revert Limited Lifetime Warranty

Perfect for navigation panels, helm stations, bilge pumps, lighting control, and other critical marine electrical applications.

LED Color Options:

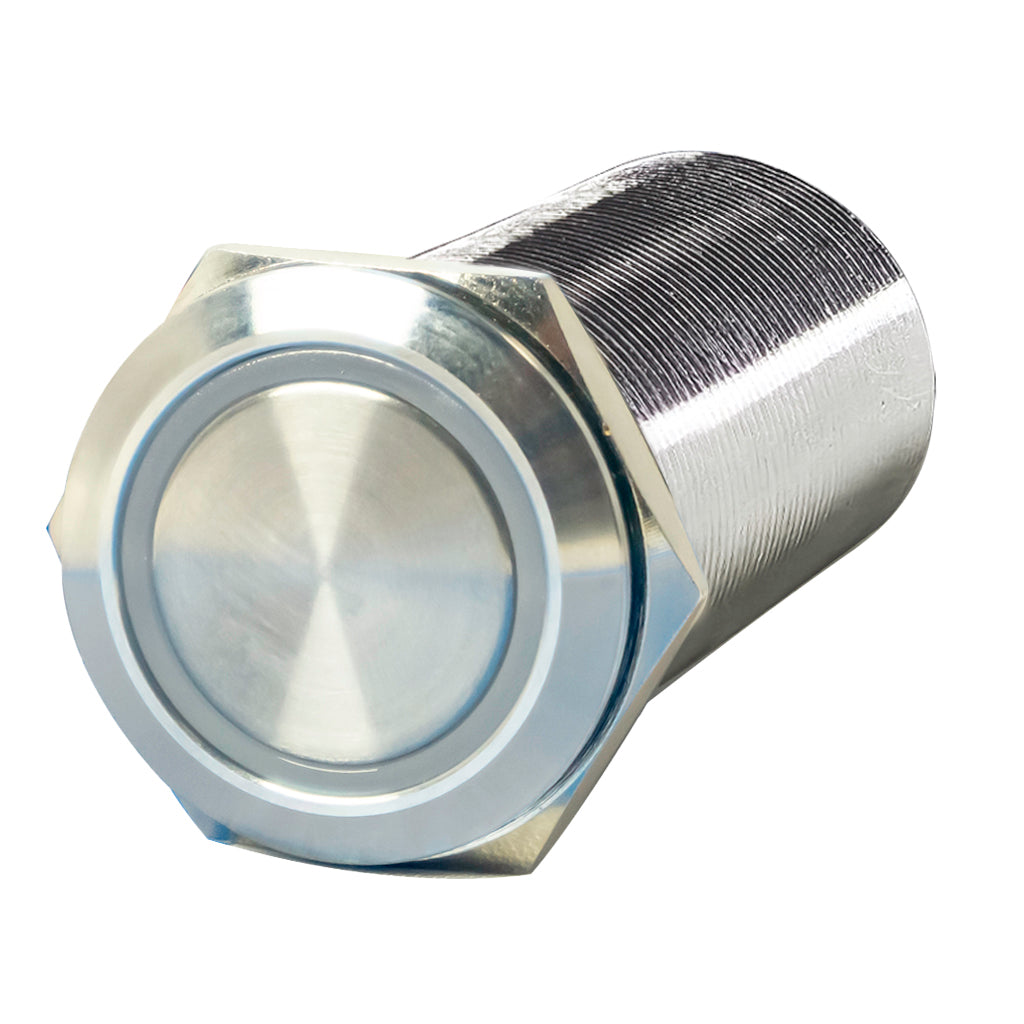

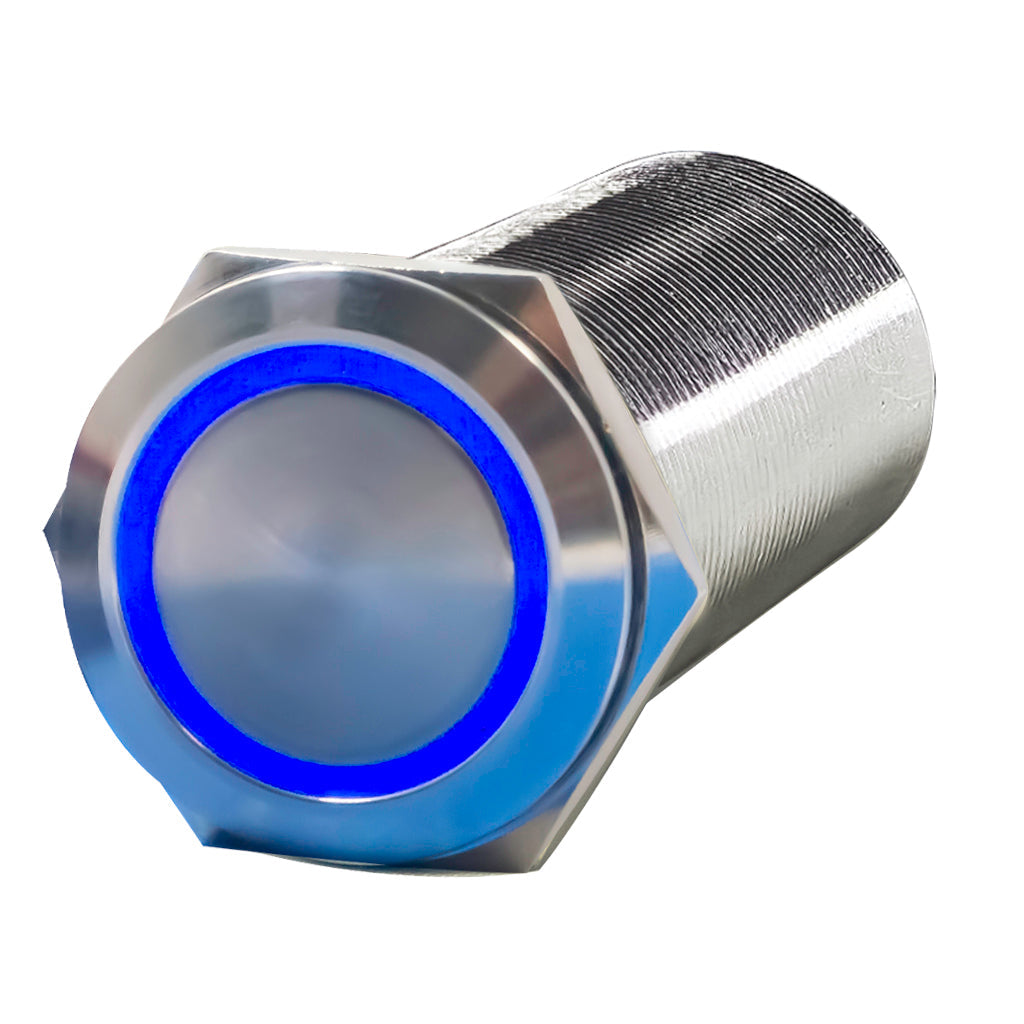

• OFF Position: LED can be Blue, Red, or Off (no illumination)
• ON Position: LED can be Blue (if Red is not selected for ON) or Red

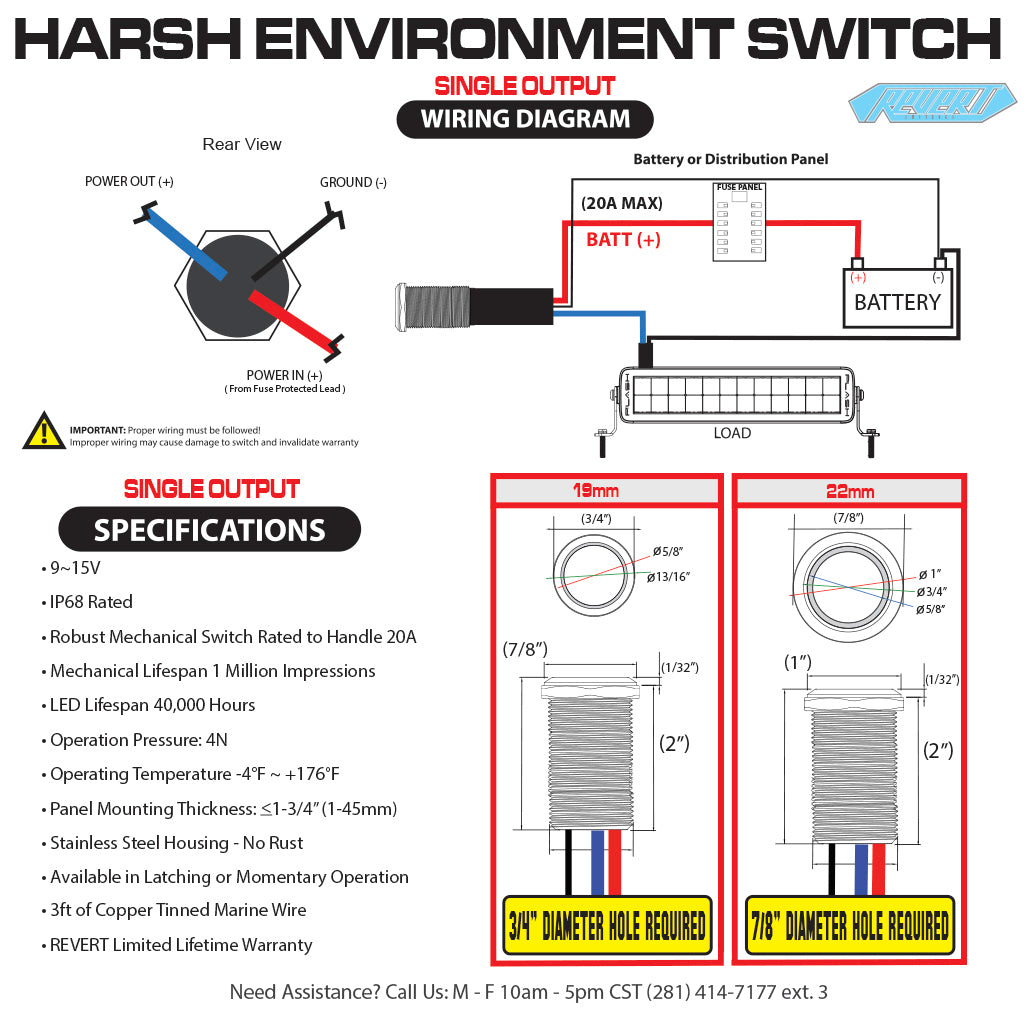

Specification Sheet:

FAQ – REVERT 19mm Dual Color Harsh Environment Marine Push Button Switch

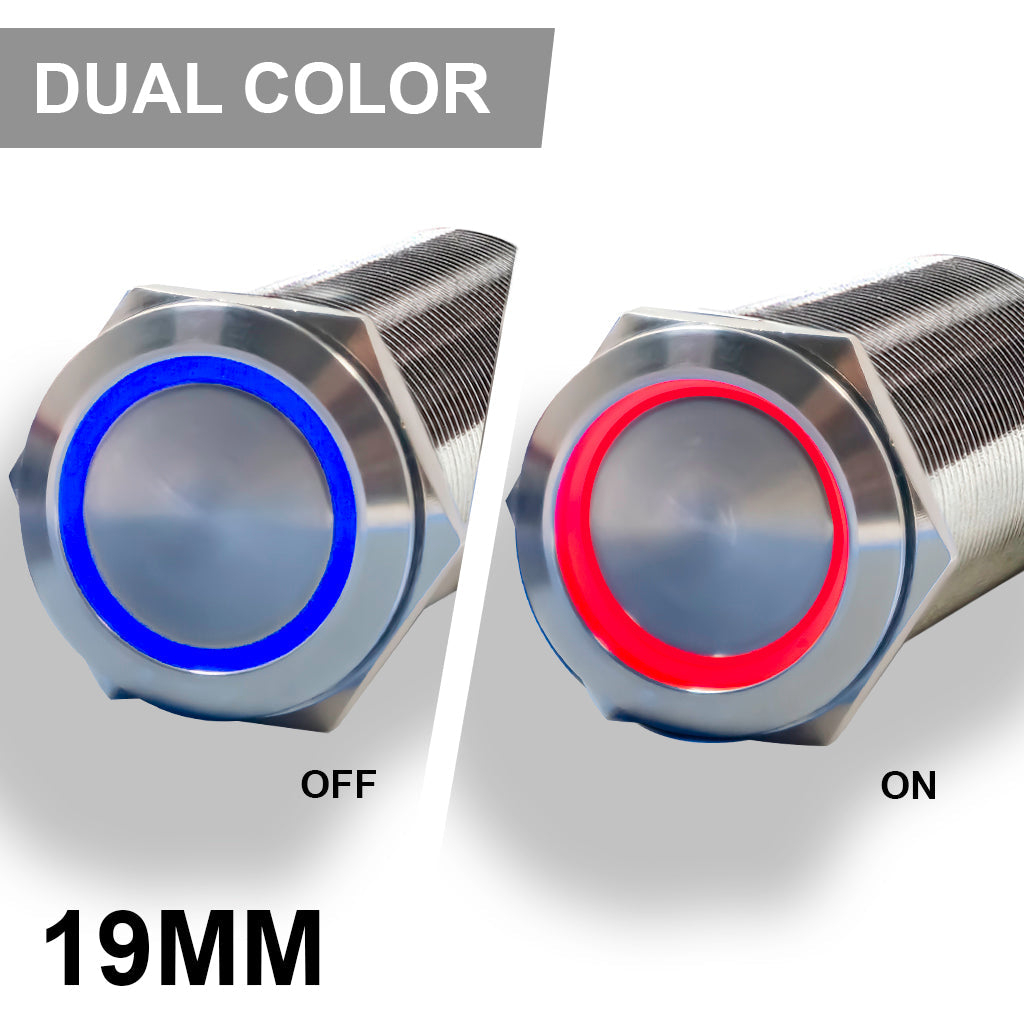

What does Dual Color mean? The switch features a dual-color LED ring that changes color based on the switch position, giving you clear visual feedback at night or in low-light conditions.

What LED colors are available?

• OFF Position: Blue, Red, or Off (no illumination)
• ON Position: Red or Blue (Blue available only when Red is not selected for ON)

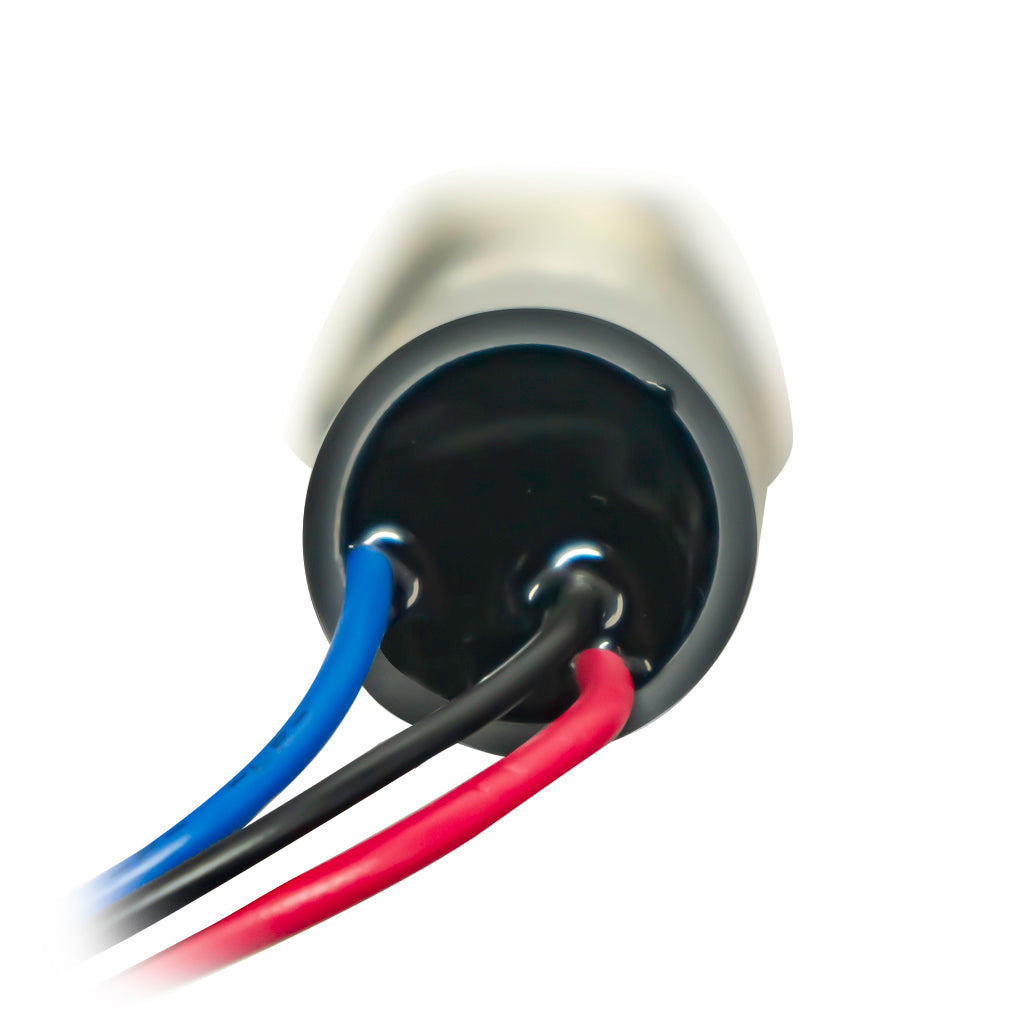

Is this switch waterproof? Yes. It is IP68 rated and fully potted, making it ideal for harsh marine environments and direct saltwater exposure.

What is the difference between 19mm and 22mm versions? The 22mm version has a larger button (7/8" diameter), which is easier to operate with gloves or in rough sea conditions. Both sizes offer the same durability and performance.

What voltage does it support? It operates on 9~36V DC, compatible with standard 12V or 24V marine electrical systems.

Is it latching or momentary? This model is available in both Latching (stays on until pressed again) and Momentary (on only while pressed) versions.

What is the expected lifespan?

• LED lifespan: +40,000 hours
• Mechanical lifespan: +150,000 impressions

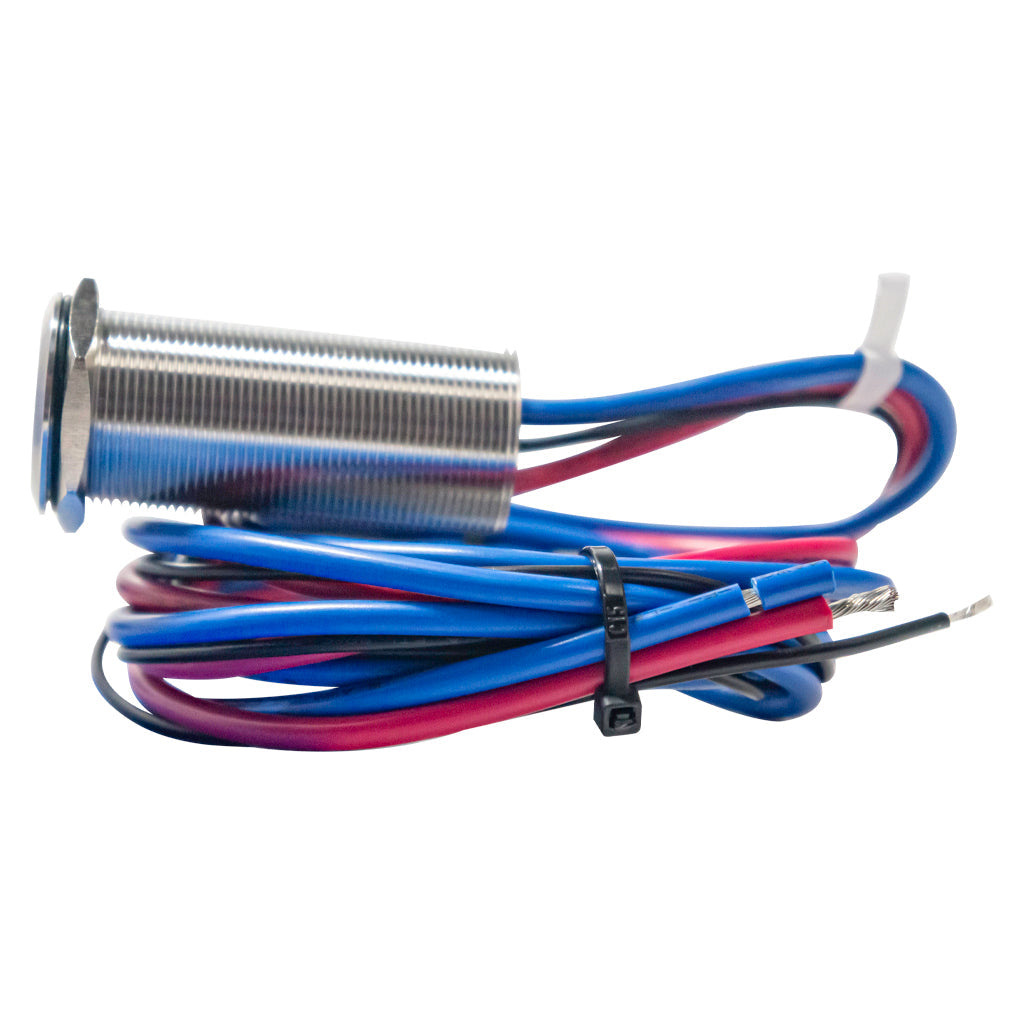

Does it come with wiring? Yes. It includes 3 feet of 14 AWG tinned marine-grade wiring for simple installation.

What is the warranty? All Revert Switches are backed by our Limited Lifetime Warranty.
