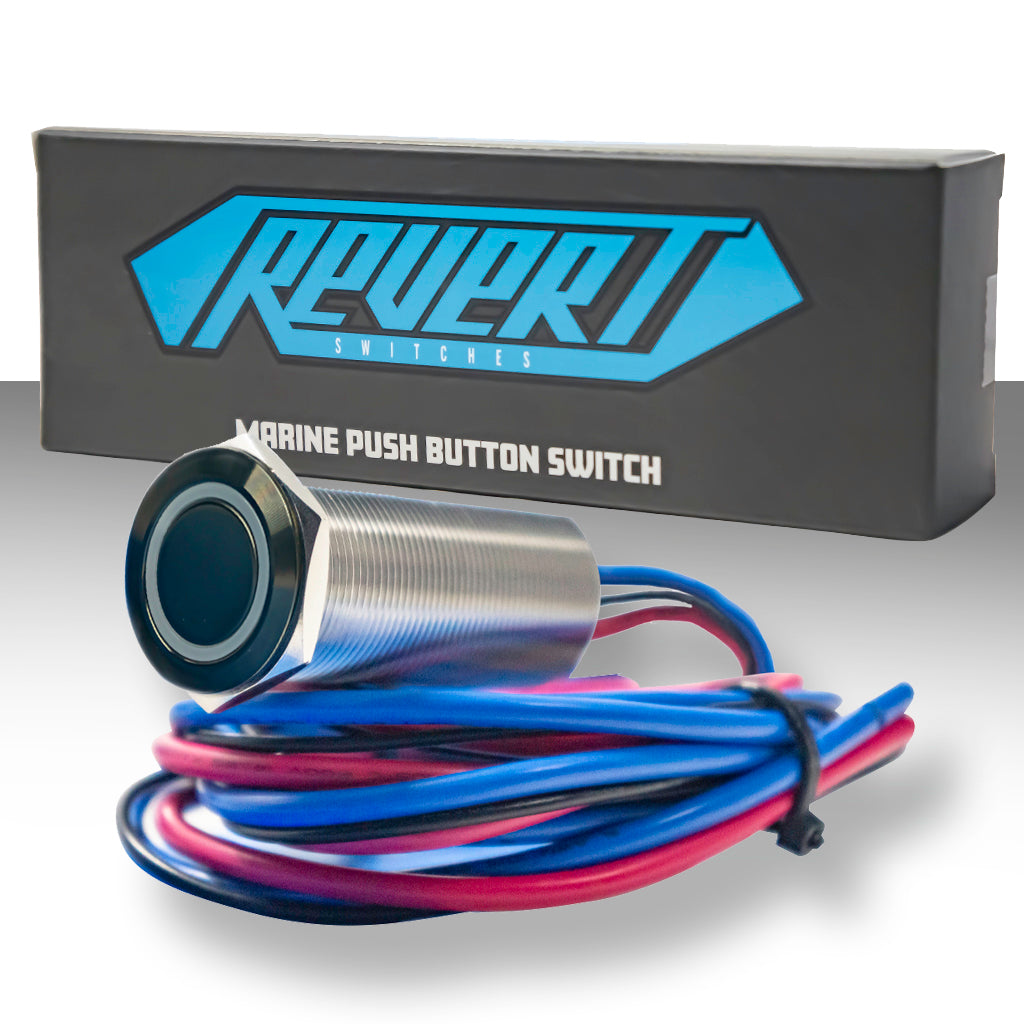

REVERT Harsh Environment Dual Color Push Button Marine Switch | 19MM | Black

REVERT Harsh Environment Dual Color Push Button Marine Switch | 19MM | Black

Regular price $50.00 USD
Regular price Sale price $50.00 USD
Sale Sold out
Style
Quantity

The marine world asked for it and here it is!  The revolutionary REVERT Switches.  Made to last the lifespan of the boat and keep your electronics functioning as intended in the harsh salt water environment. No corners cut here. Nothing but the best components, material, and processes used for the bad boys.

FEATURES:

  • Input Voltage: 9~15V
  • Robust Mechanical Switch Rated for 20A
  • Black Hardcoat Anodized 316 Stainless Steel Housing = No More Fading
  • 19mm (3/4") Diameter Button

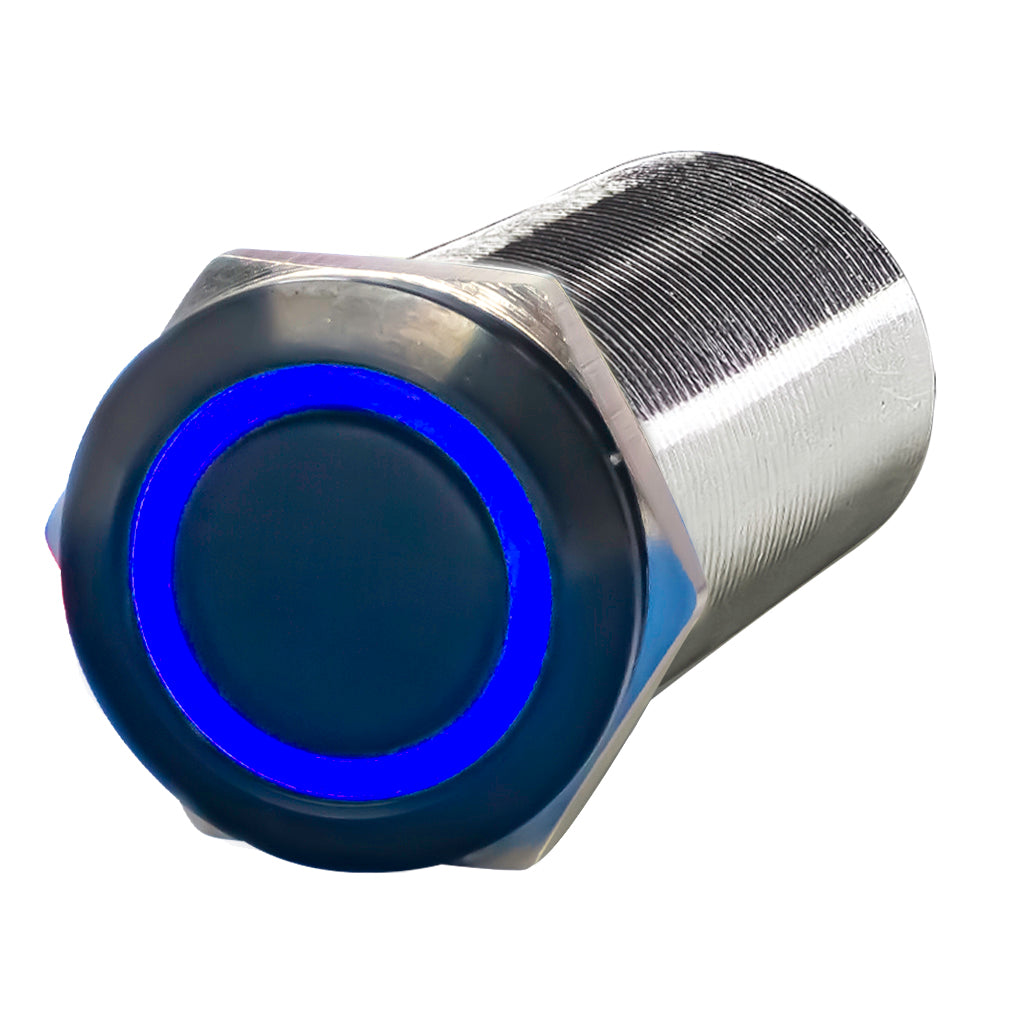

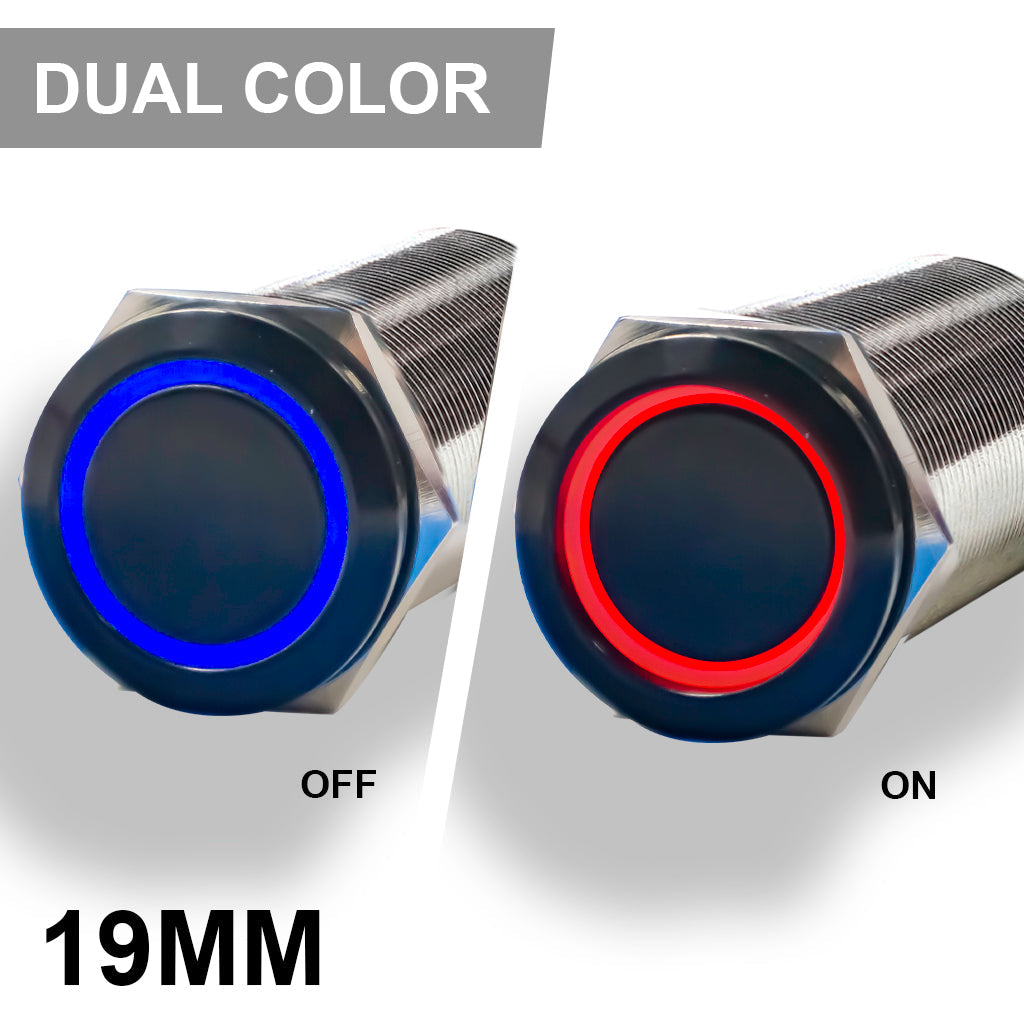

  • Dual Color LED Backlit Ring

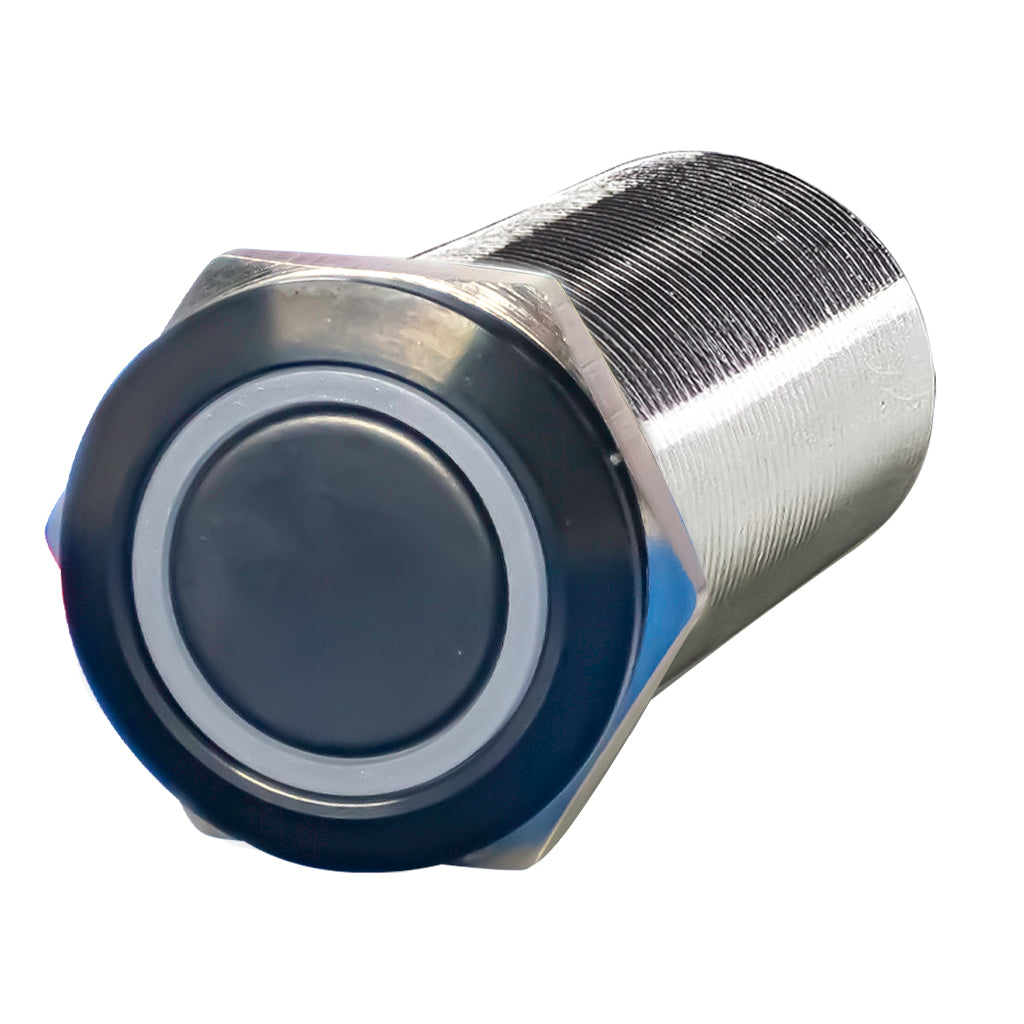

  • LED can be Blue, Red, or not illuminated when in the OFF Position

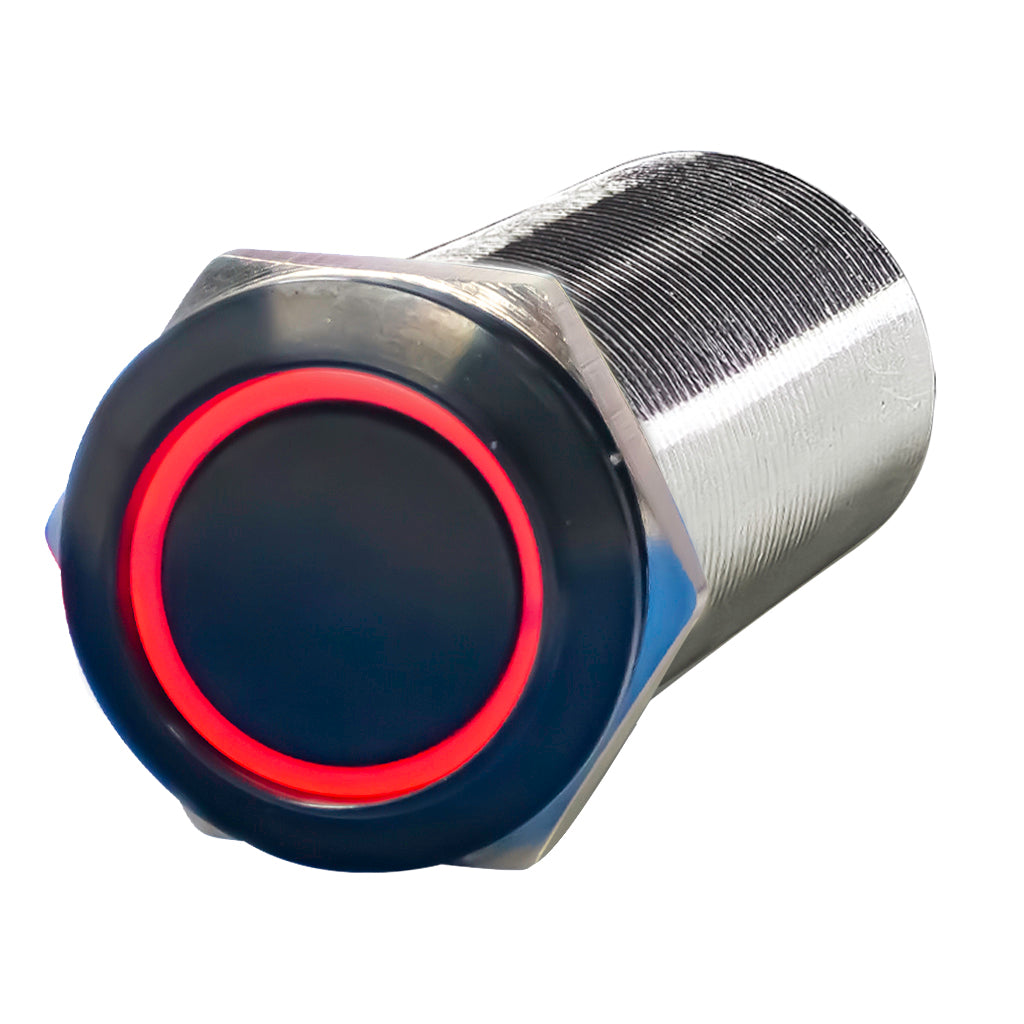

  • LED can be Blue (only if Red is not the ON color) or Red when in the ON Position
  • The LED Lifespan is +40,000 Hours

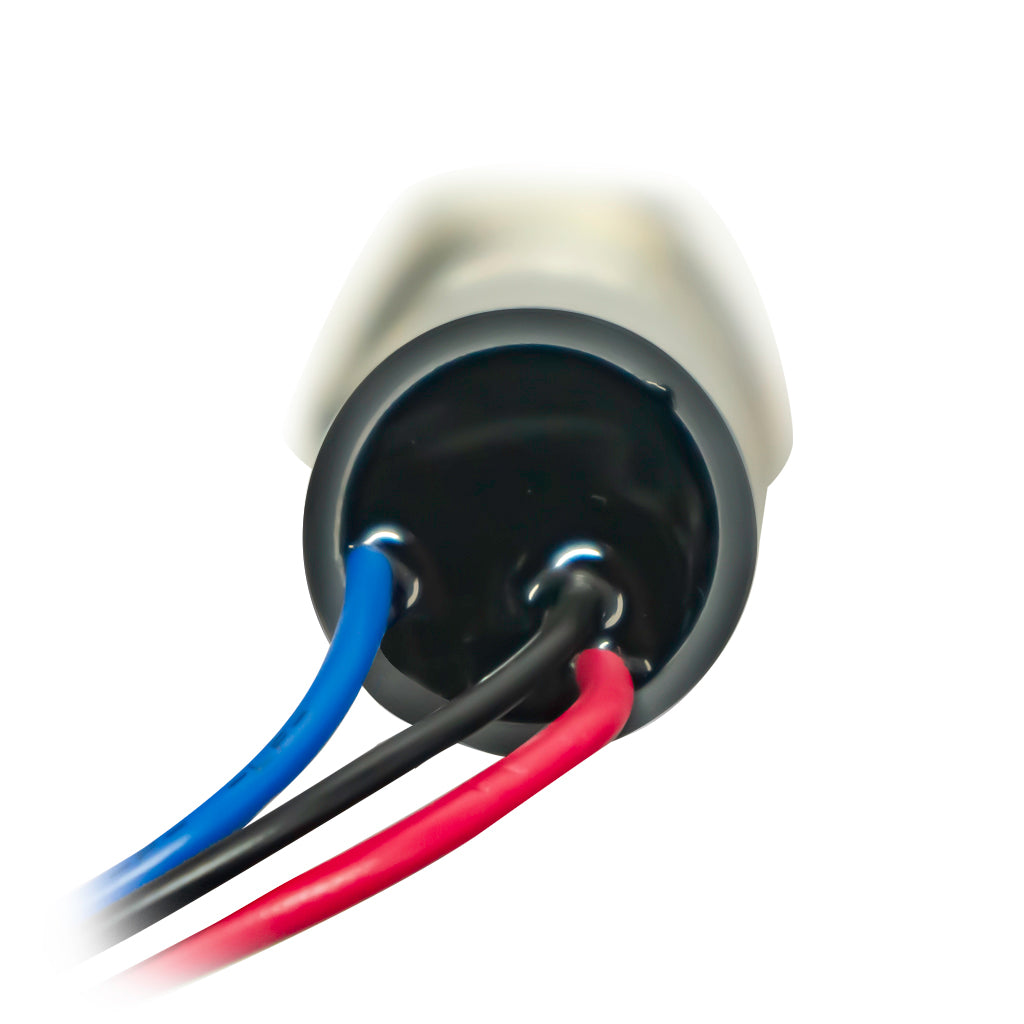

  • IP68 Rated Waterproof - Fully Potted
  • Mechanical Lifespan of +150,000 Impressions
  • 8.6g Vibration Compliant
  • Salt Spray Tested & UV Resistant
  • Available in Latching or Momentary Operation

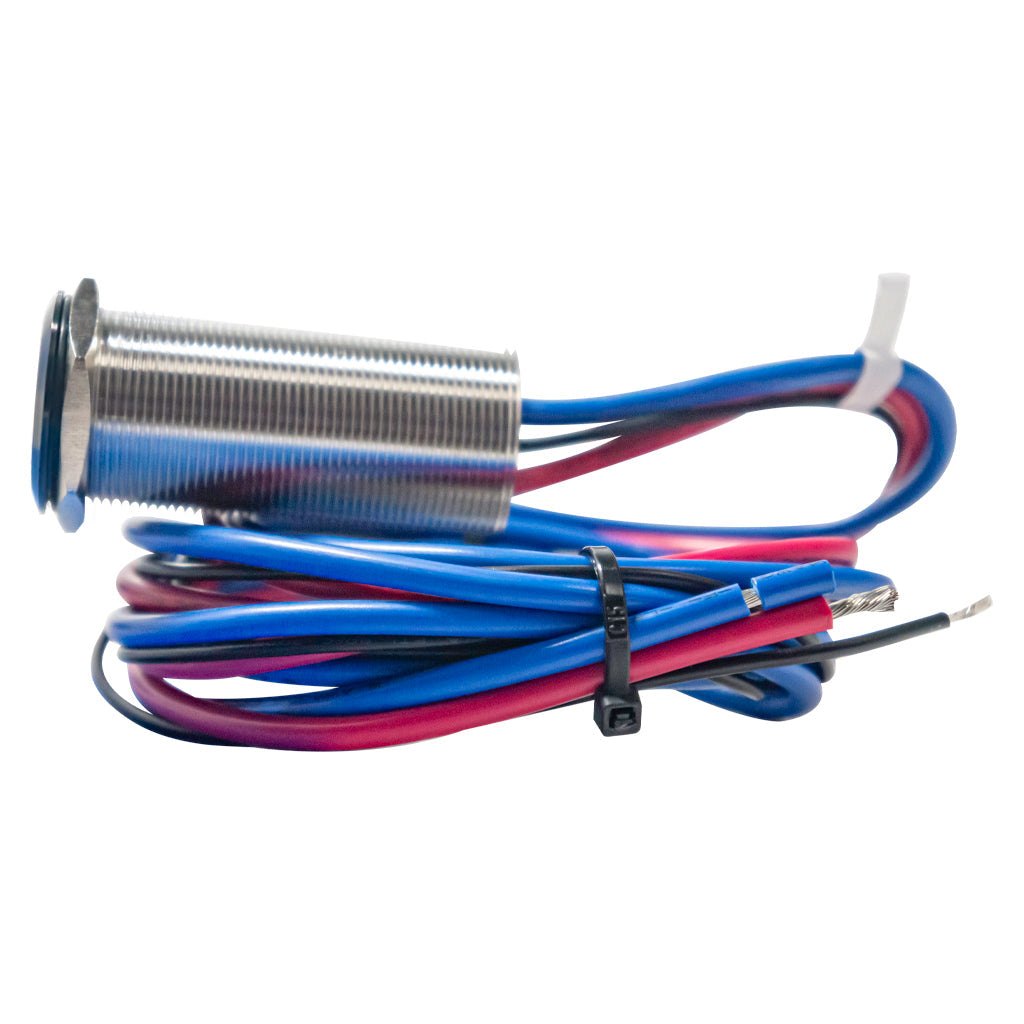

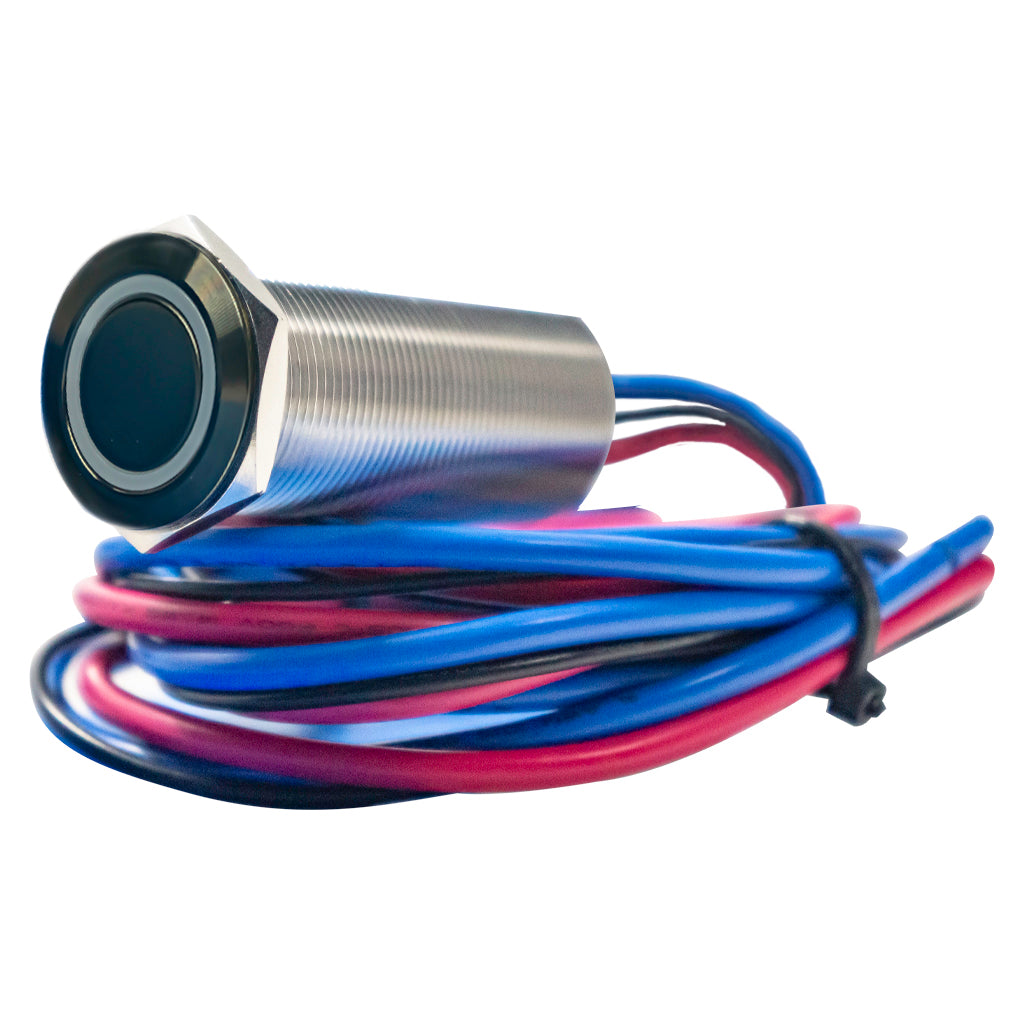

  • 3ft of 14 AWG Copper Tinned Wiring for a Simple Installation
  • Panel Mounting Thickness: <0."1 ~ 1.85" (1mm ~ 47mm)
  • Requires a 3/4" Wide Round Hole for Mounting
  • REVERT Limited Lifetime Warranty



WIRING:

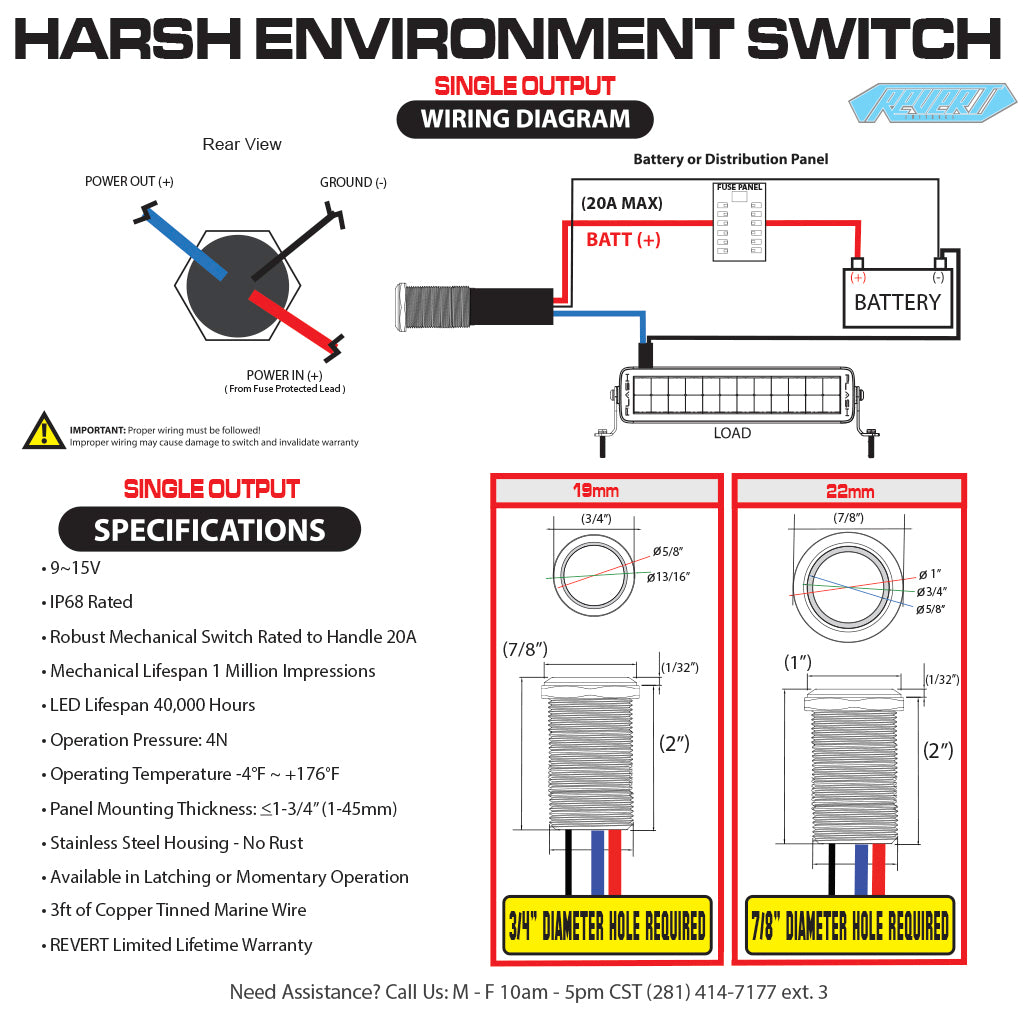

19MM Harsh Environment Wiring Diagram
